Calibrated Setup Bars

Calibrated Setup Bars

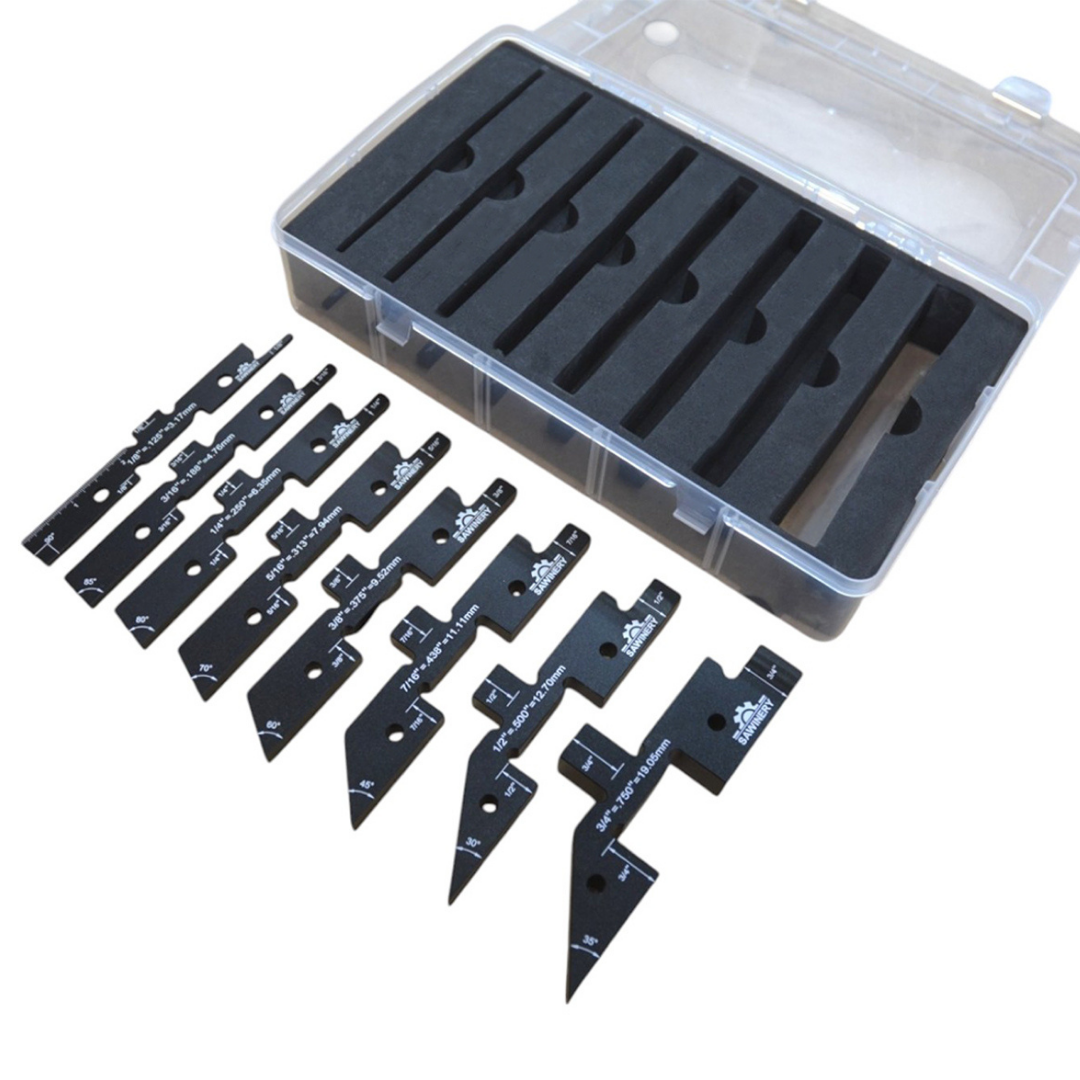

Ensure flawless accuracy on your table saw, router, and bandsaw with a set of 9 precision aluminum setup bars that combine height and fence adjustments with integrated angle gauges.

Faster Setup

Faster Setup

More Accurate Cuts

More Accurate Cuts

Max 0.002" Tolerance

Max 0.002" Tolerance

Durable Anodized Aluminum

Durable Anodized Aluminum

Easy-to-Read Etched Markings

Easy-to-Read Etched Markings

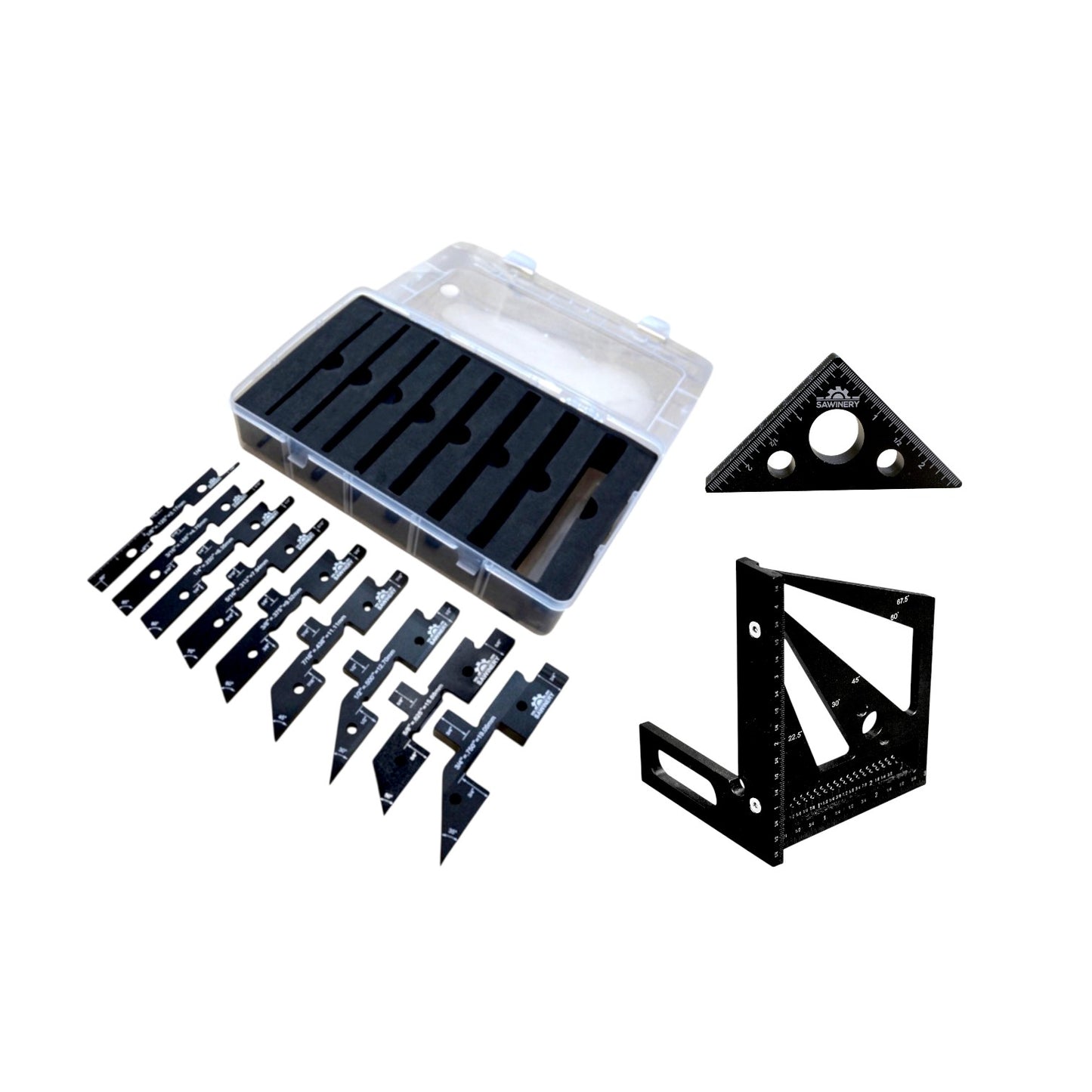

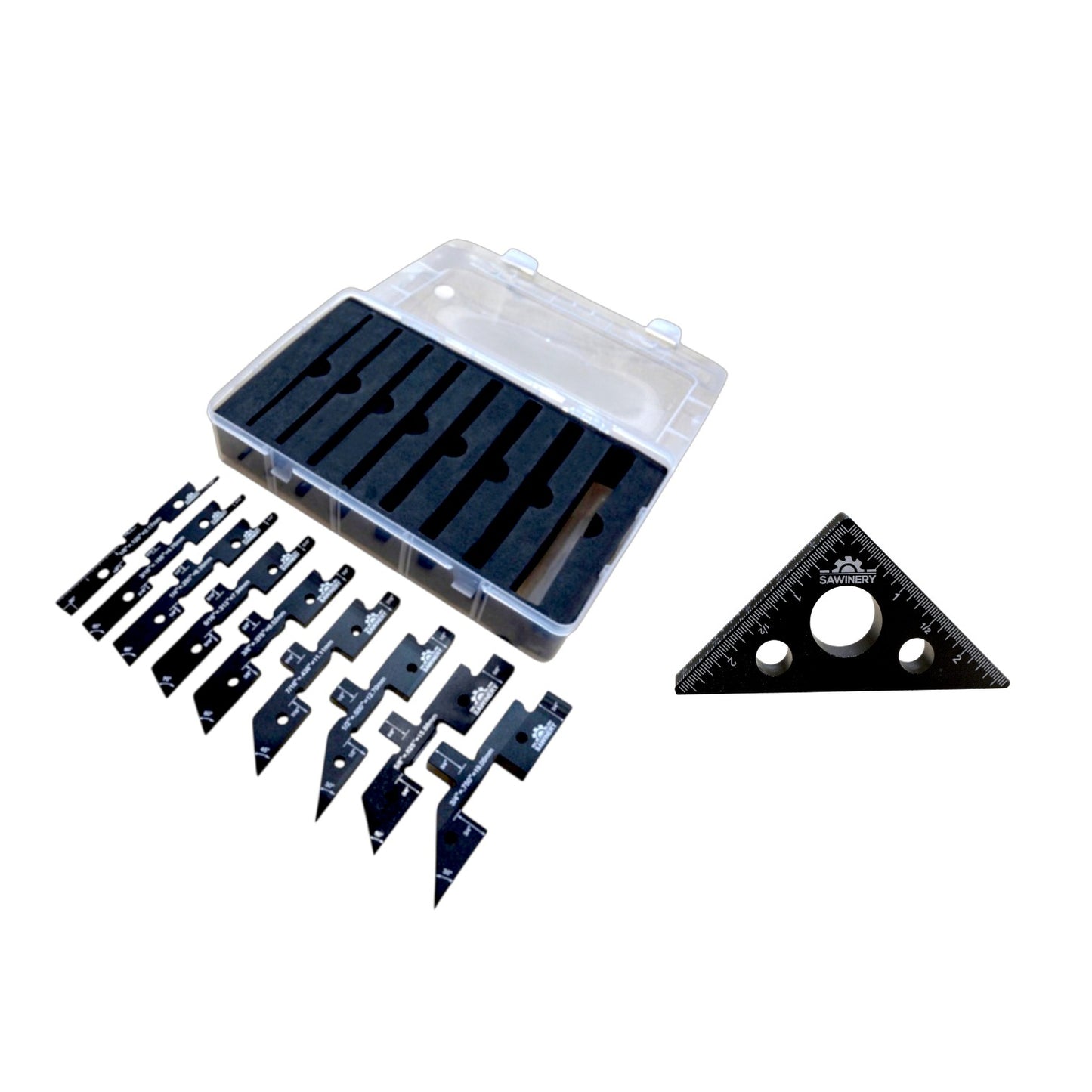

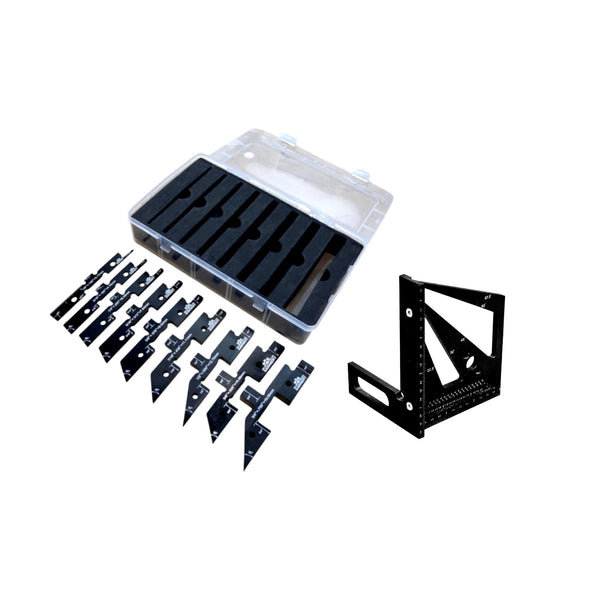

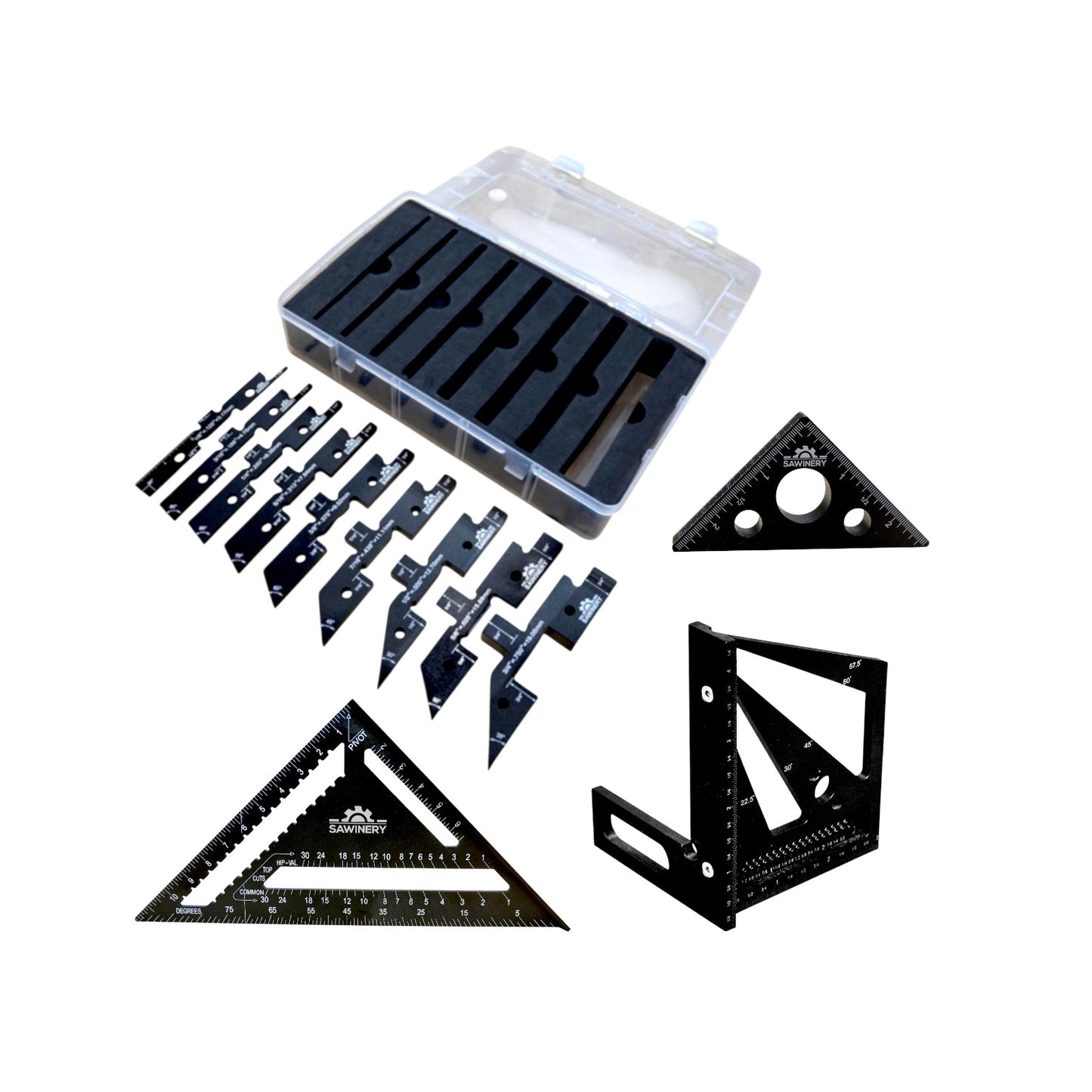

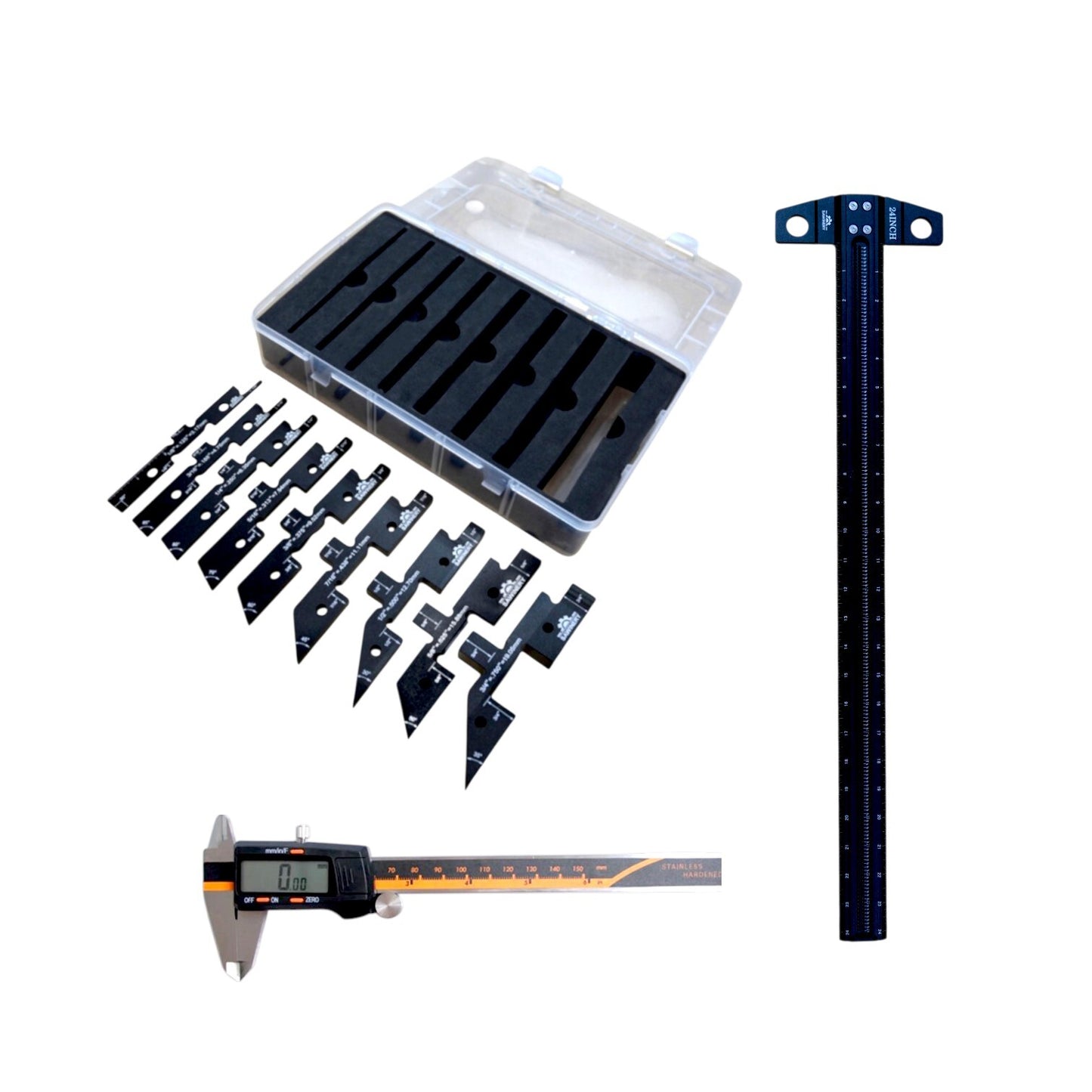

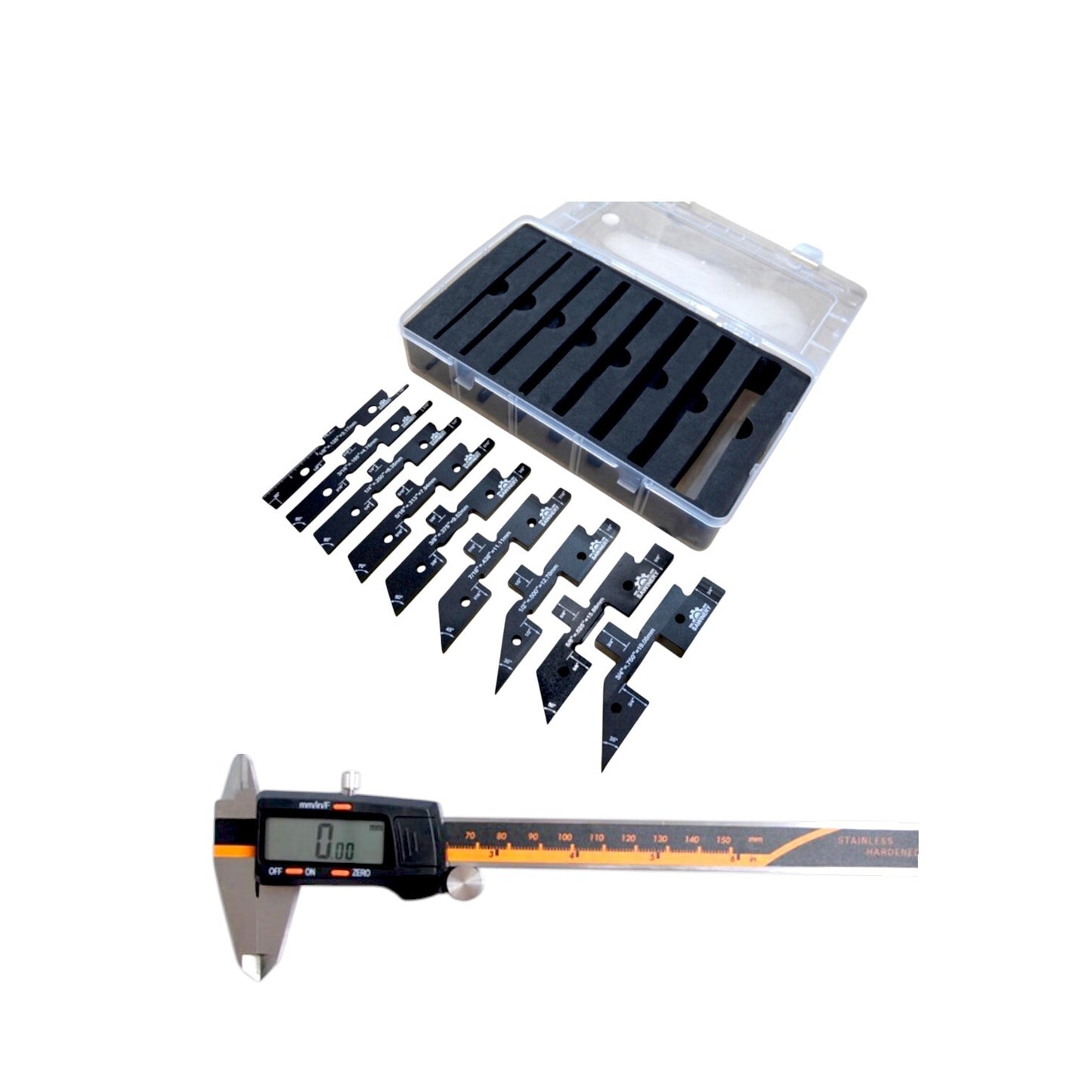

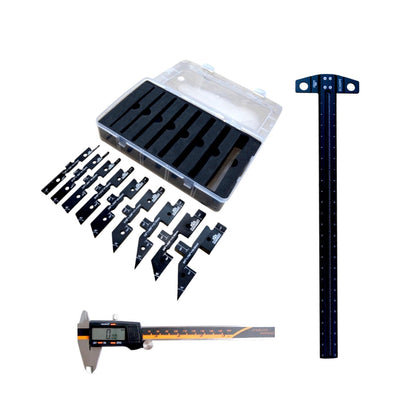

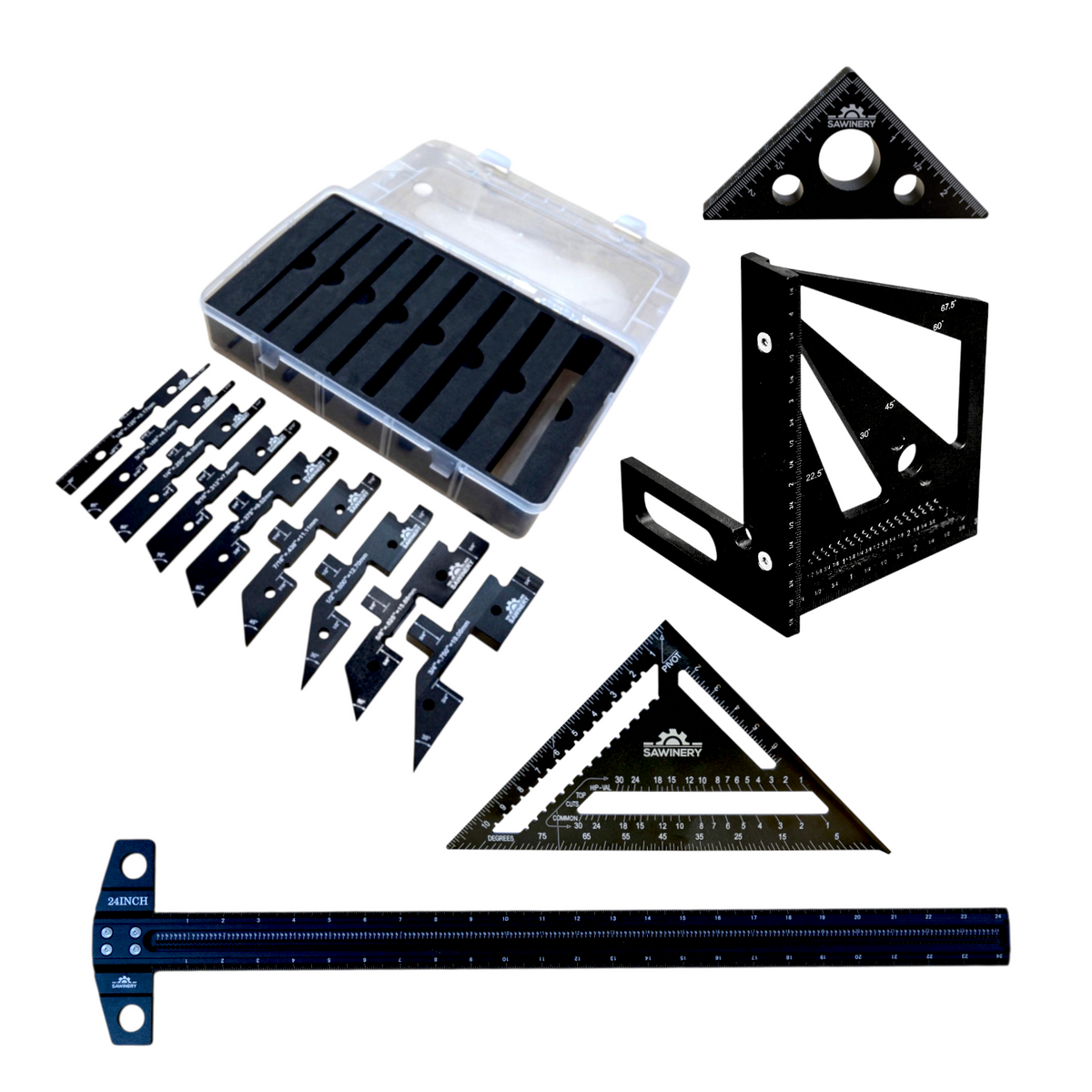

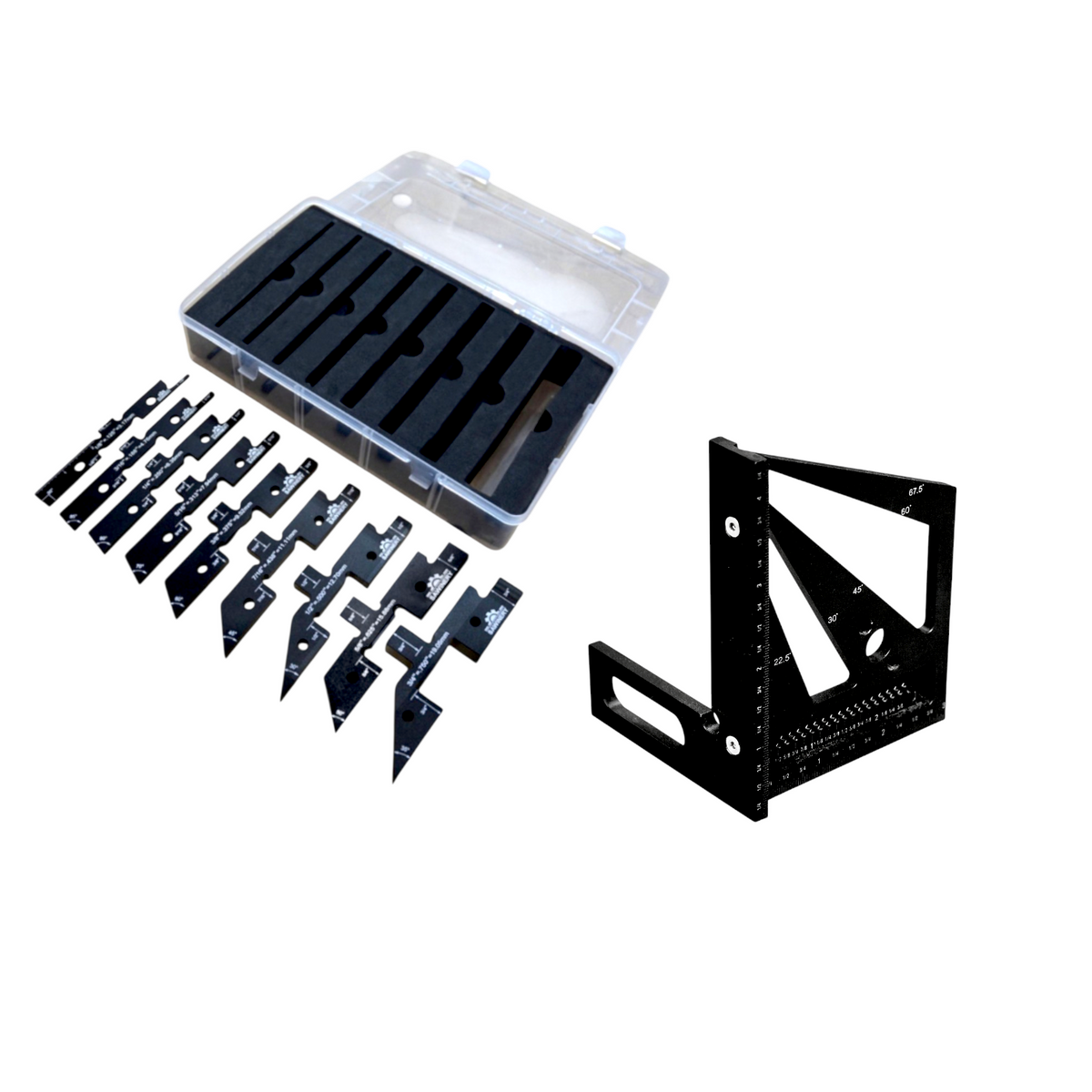

Choose Your Kit

  • 🎖️ A portion of every order is donated to The Purple Heart Project, helping combat-wounded veterans find peace through traditional hand tool woodworking.

Our Guarantee

Precision Guaranteed: Our Calibrated Setup Bars have a maximum tolerance of 0.002", so you can count on consistent, accurate setups. If you don't absolutely love them, send them back within 30 days for your money back. Full refund policy here.

Specifications

Dimensions: 11.45 x 7.05 x 2.72 in
Weight: 2.2 lb. | 1 kg.

⚠️ CA WARNING: Cancer and Reproductive Harm from Lead, Nickel, and Wood Dust exposure — www.P65Warnings.ca.gov

View full details

Highlights:

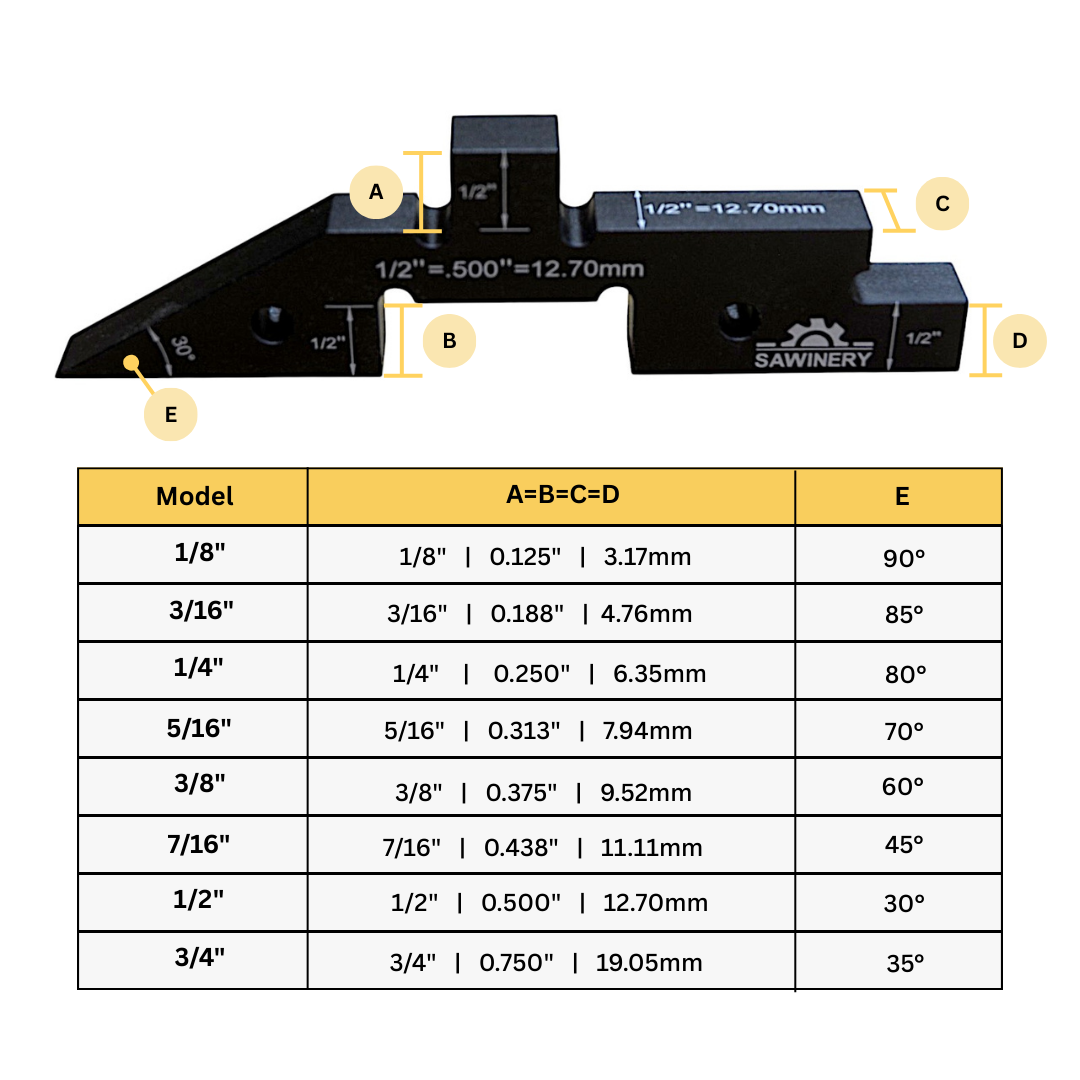

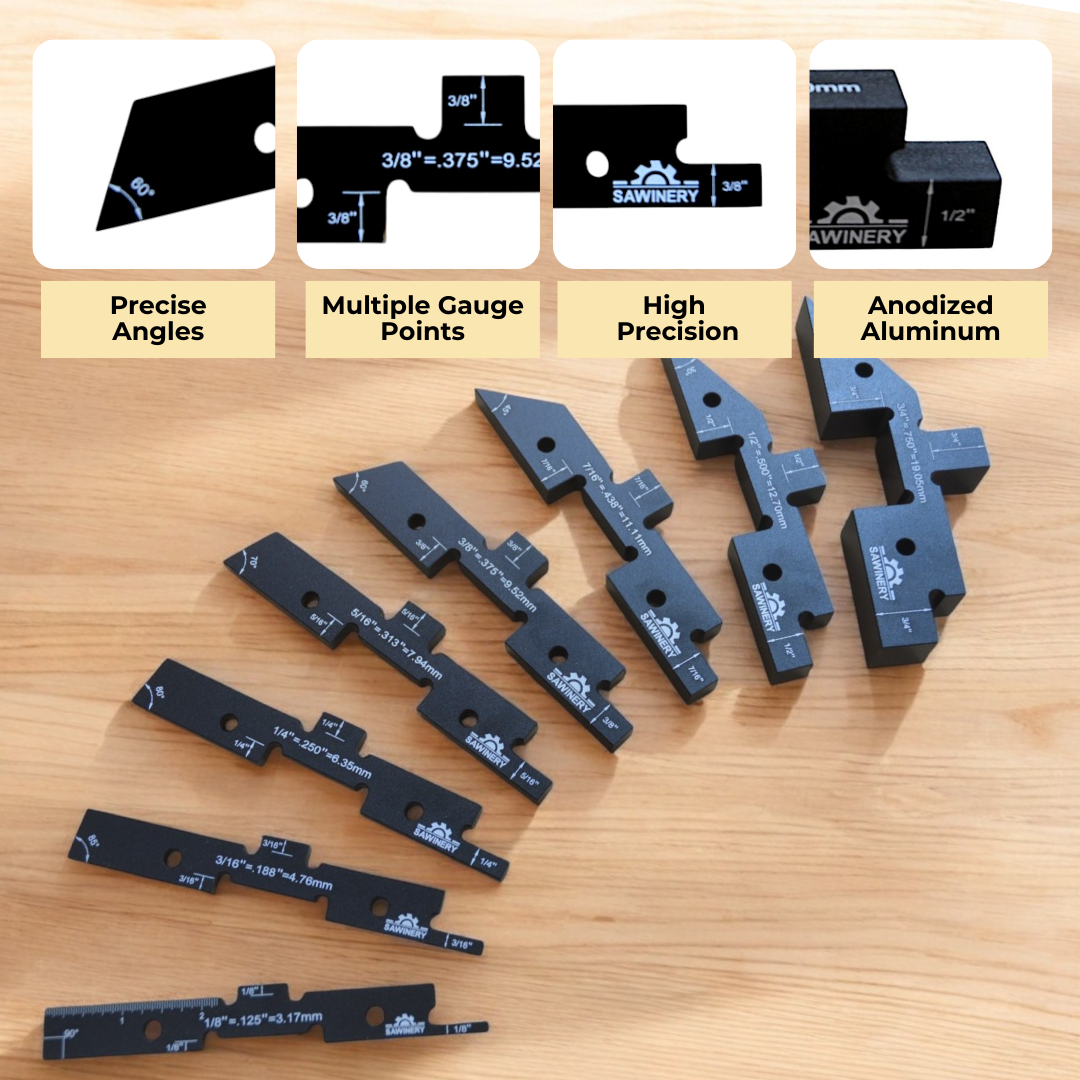

  • Multiple Gauging Points:

    Each bar has three points for basic dimension measurements and includes built-in angle gauges for additional setups.

  • Comprehensive Sizing:

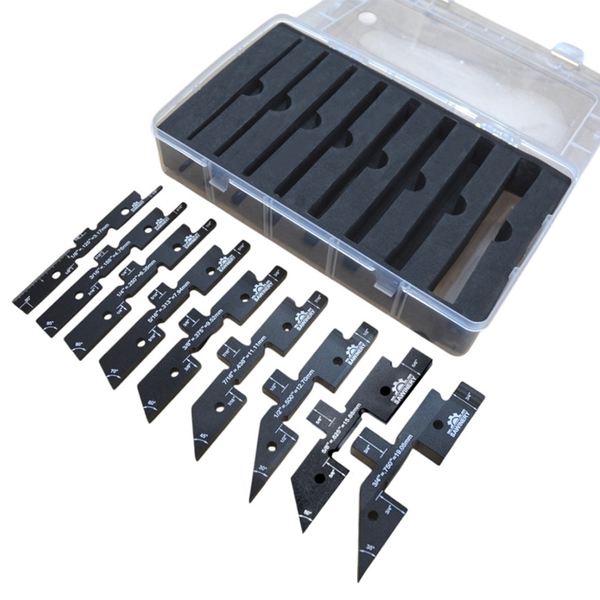

    Bars range from 1/8" to 3/4" in 1/16" increments, with an extra 5/8" bar, covering a broad array of tool setups.

  • Built-in Angle Gauges:

    Included angles of 30°, 35°, 45°, 50°, 60°, 70°, 80°, 85°, and 90° add versatility to your setup tasks.

  • Precision Machining:

    Each bar is precision-machined with a maximum tolerance of 0.002", delivering reliable, accurate results for every setup.

  • Durable, Easy-to-Read Design

     Made from precision-machined, bead-blasted, anodized aluminum with etched dimensional markings on both sides for durability and easy reference.

  • Versatile Applications:

    Ideal for setting:
    – Table saw blade height
    – Blade-to-fence distance on table saws and bandsaws
    – Router bit height
    – Router fence-to-bit alignment

How To Use Calibrated Setup Bars

Uses & Features

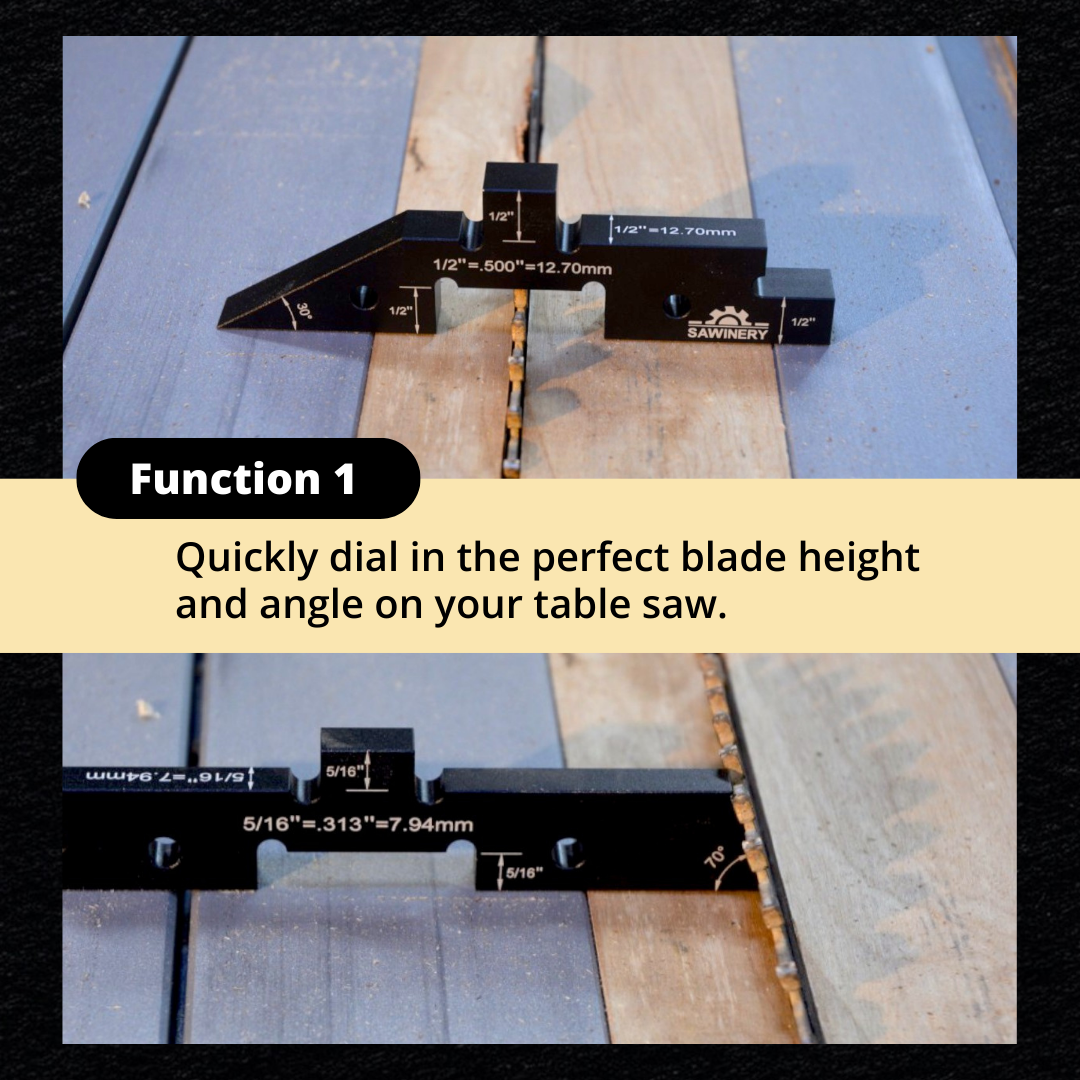

  • Setting The Table Saw Blade Angle

  • Setting The Table Saw Blade Height

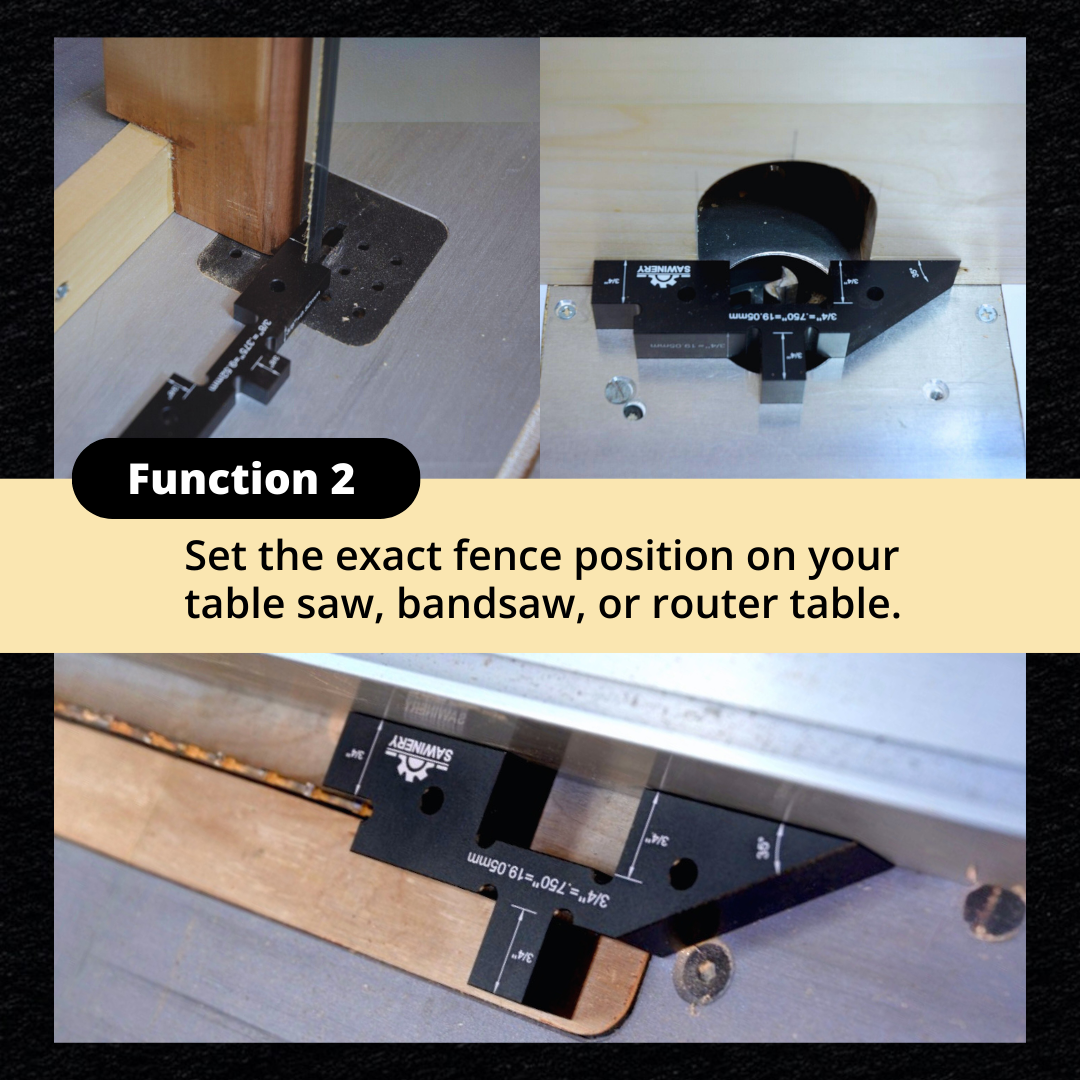

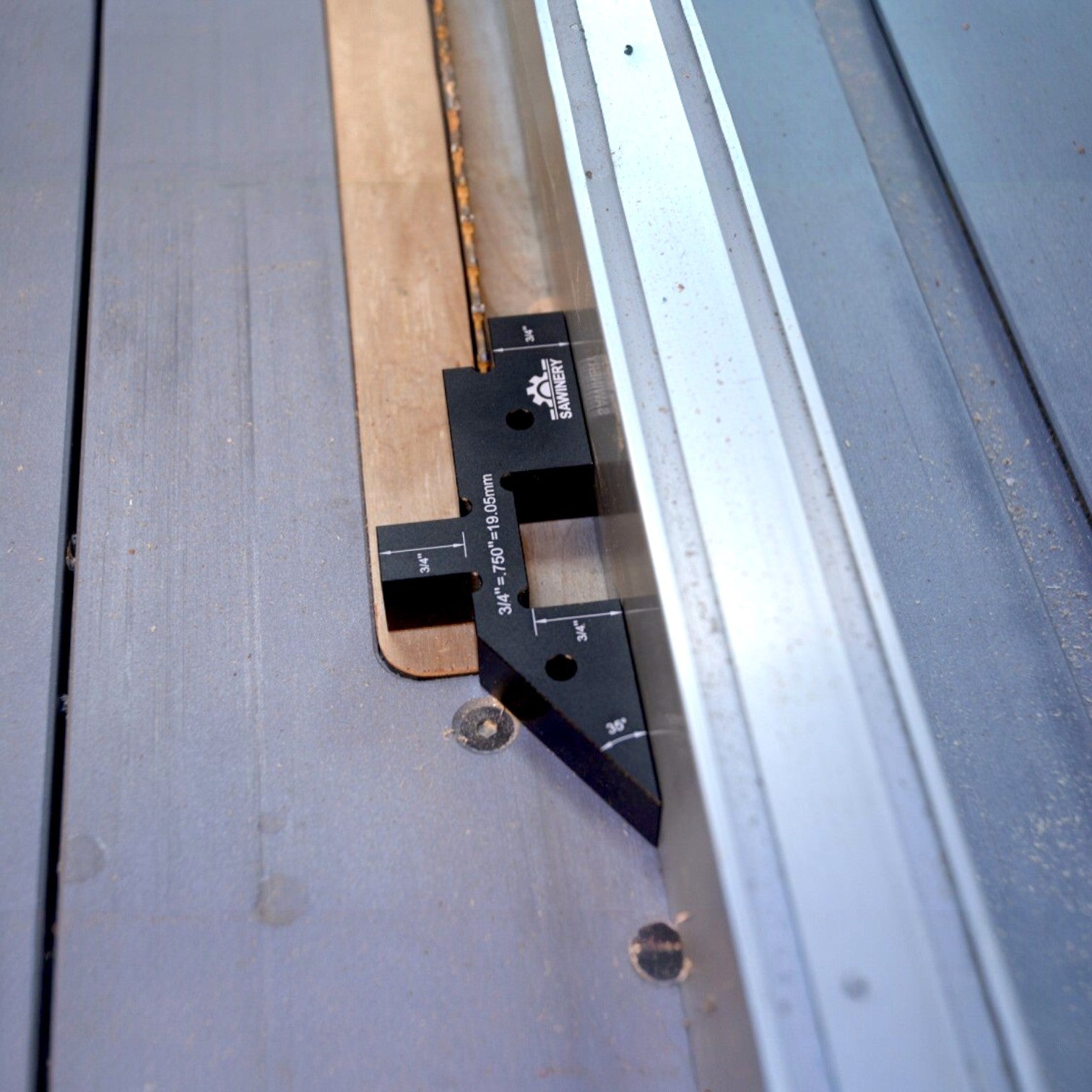

  • Setting The Table Saw Fence

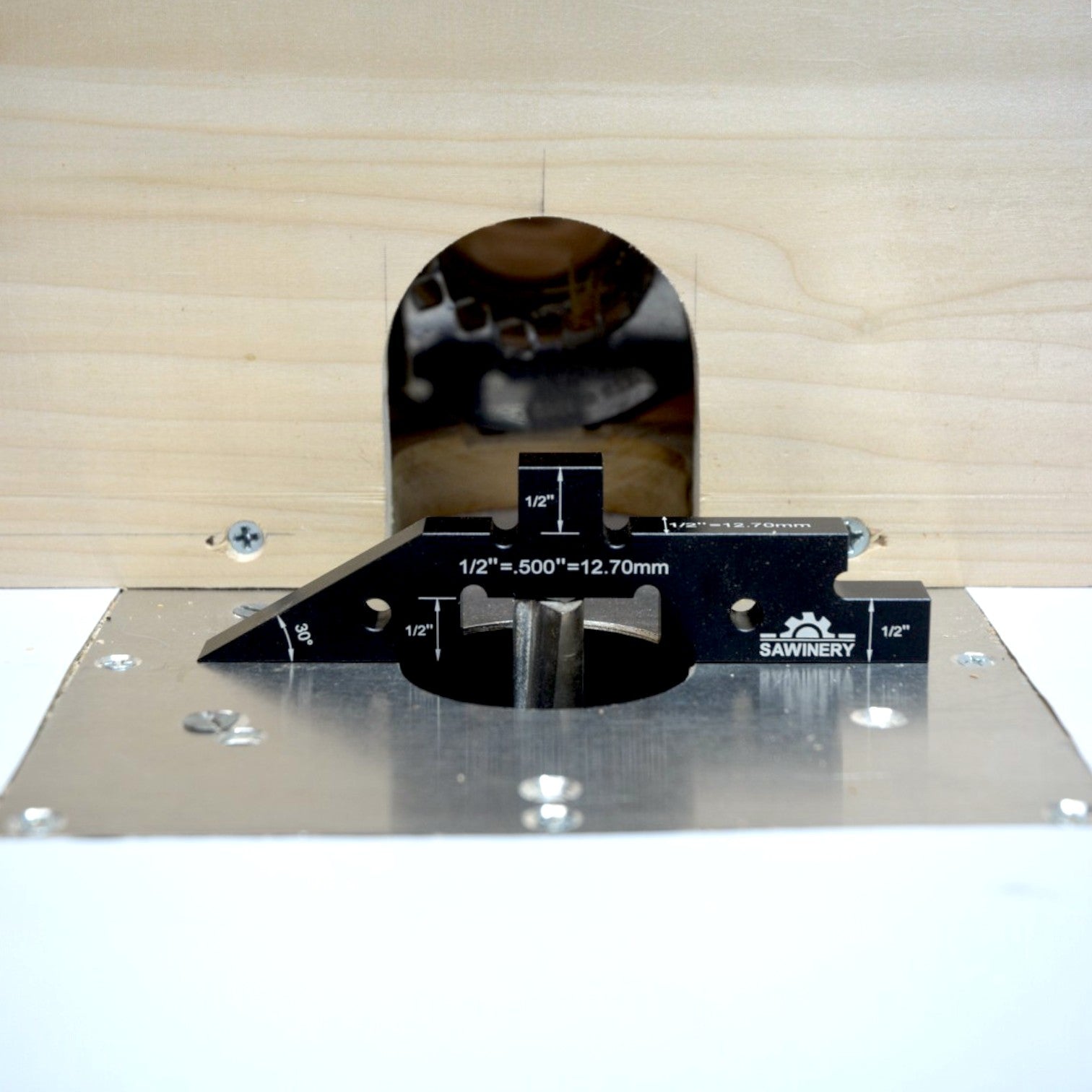

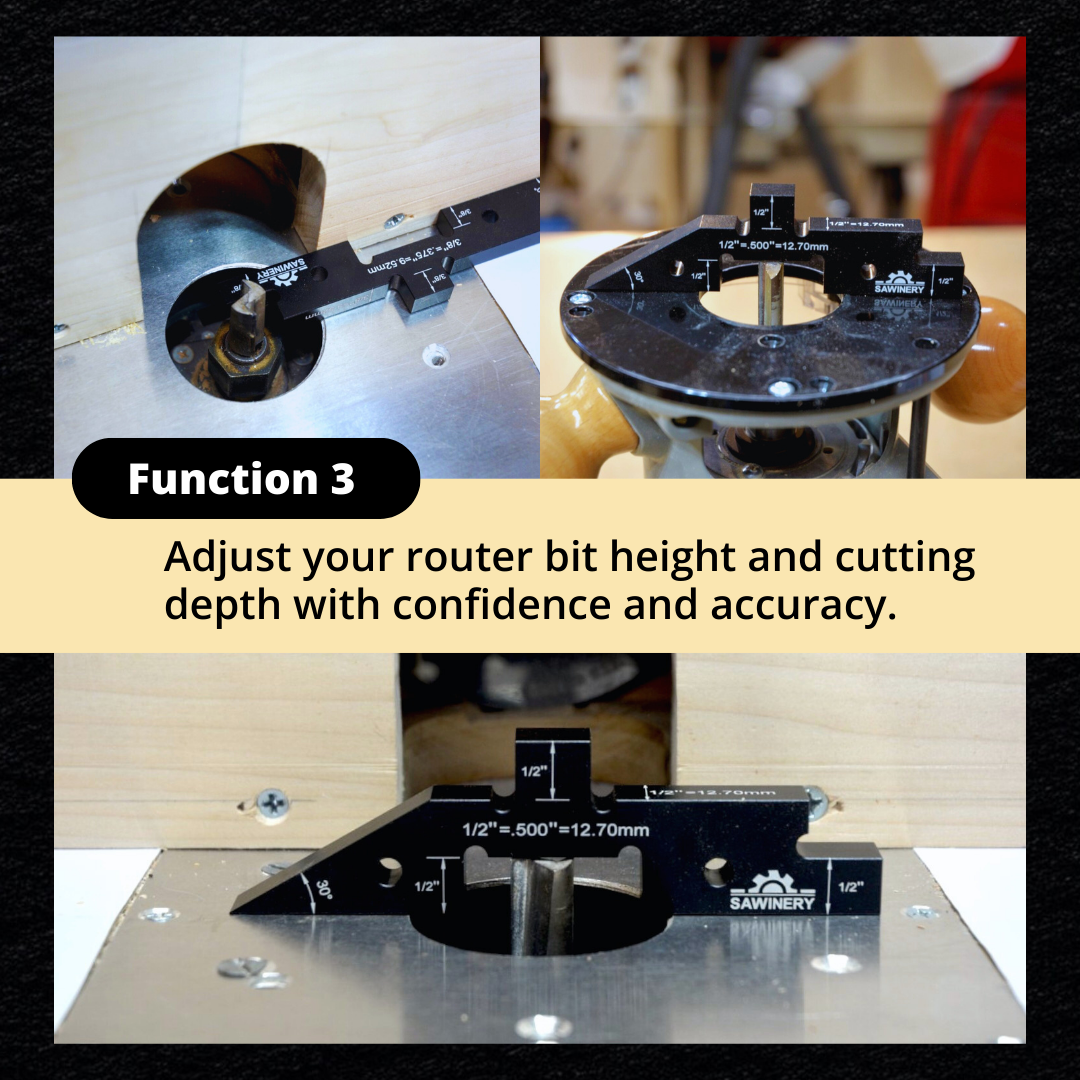

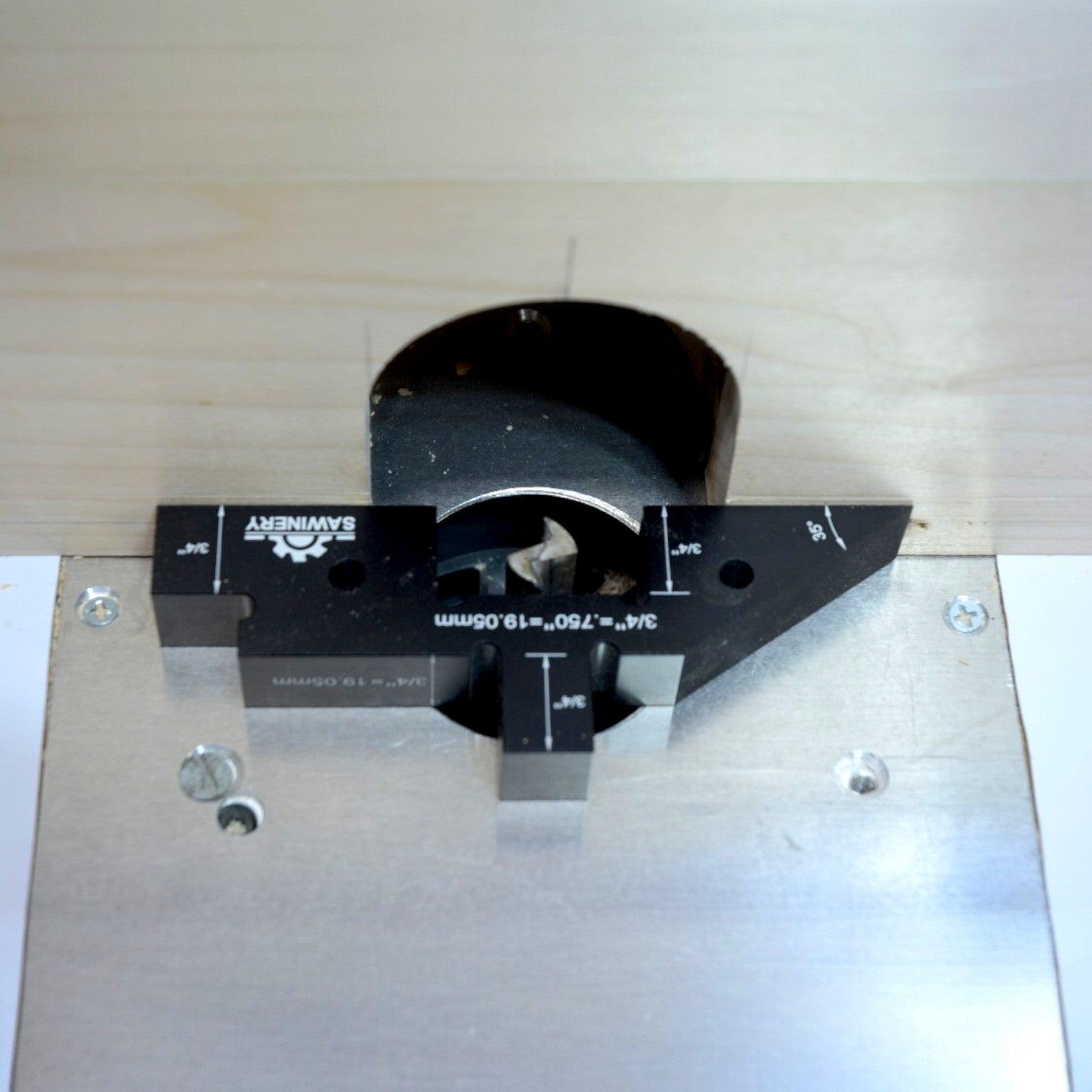

  • Setting Router Table Bit Height

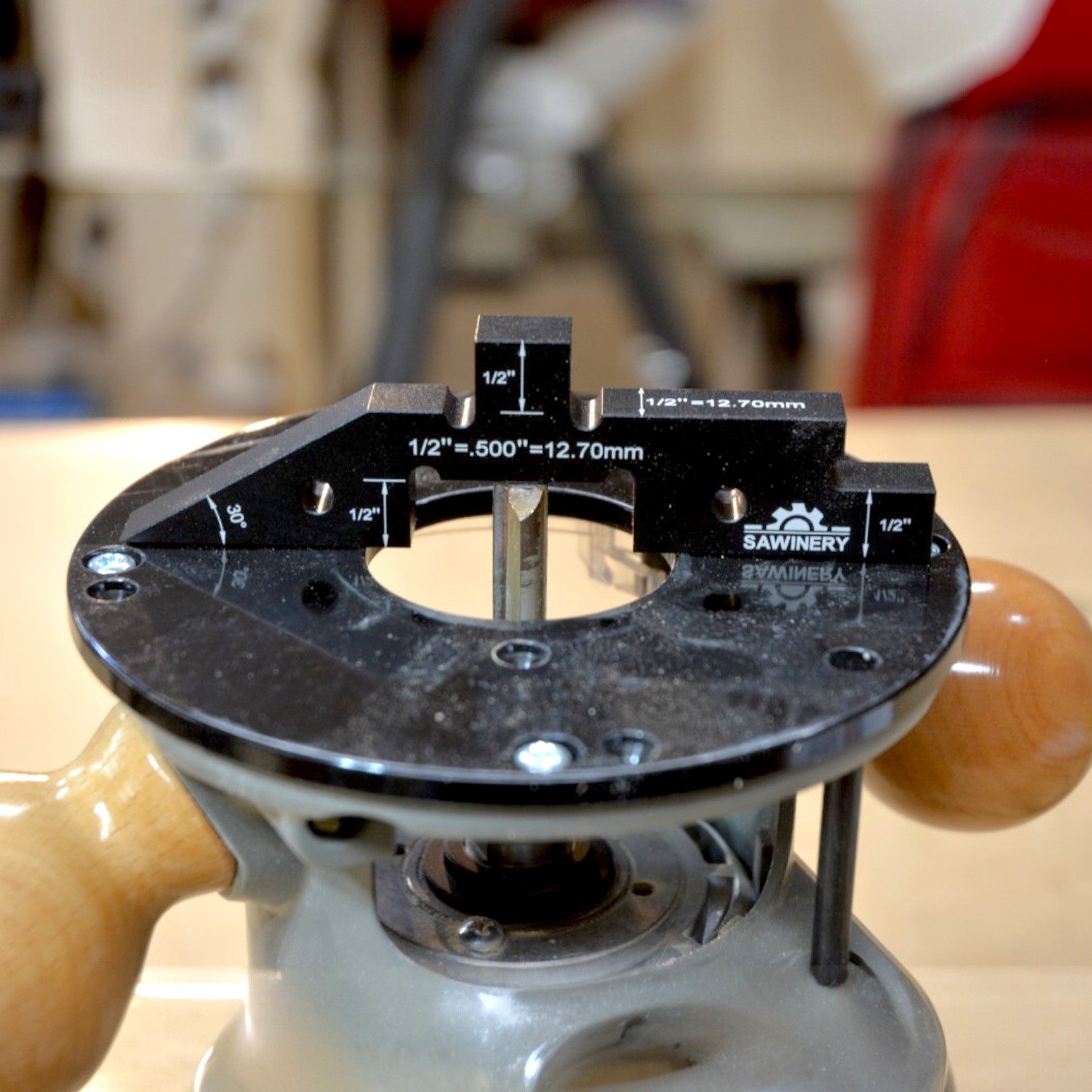

  • Setting Router Bit Depth of Cut

  • Setting Router Table Fence

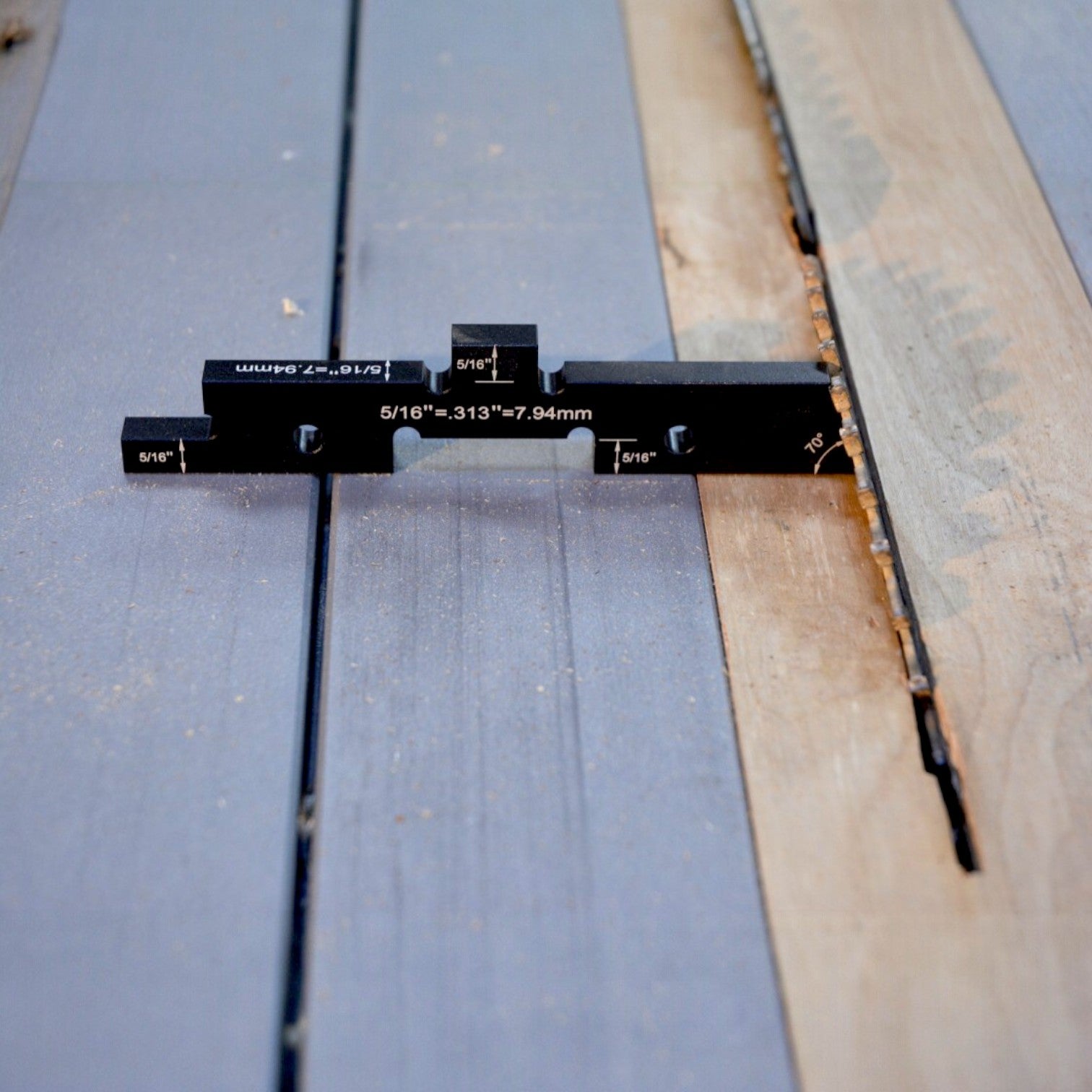

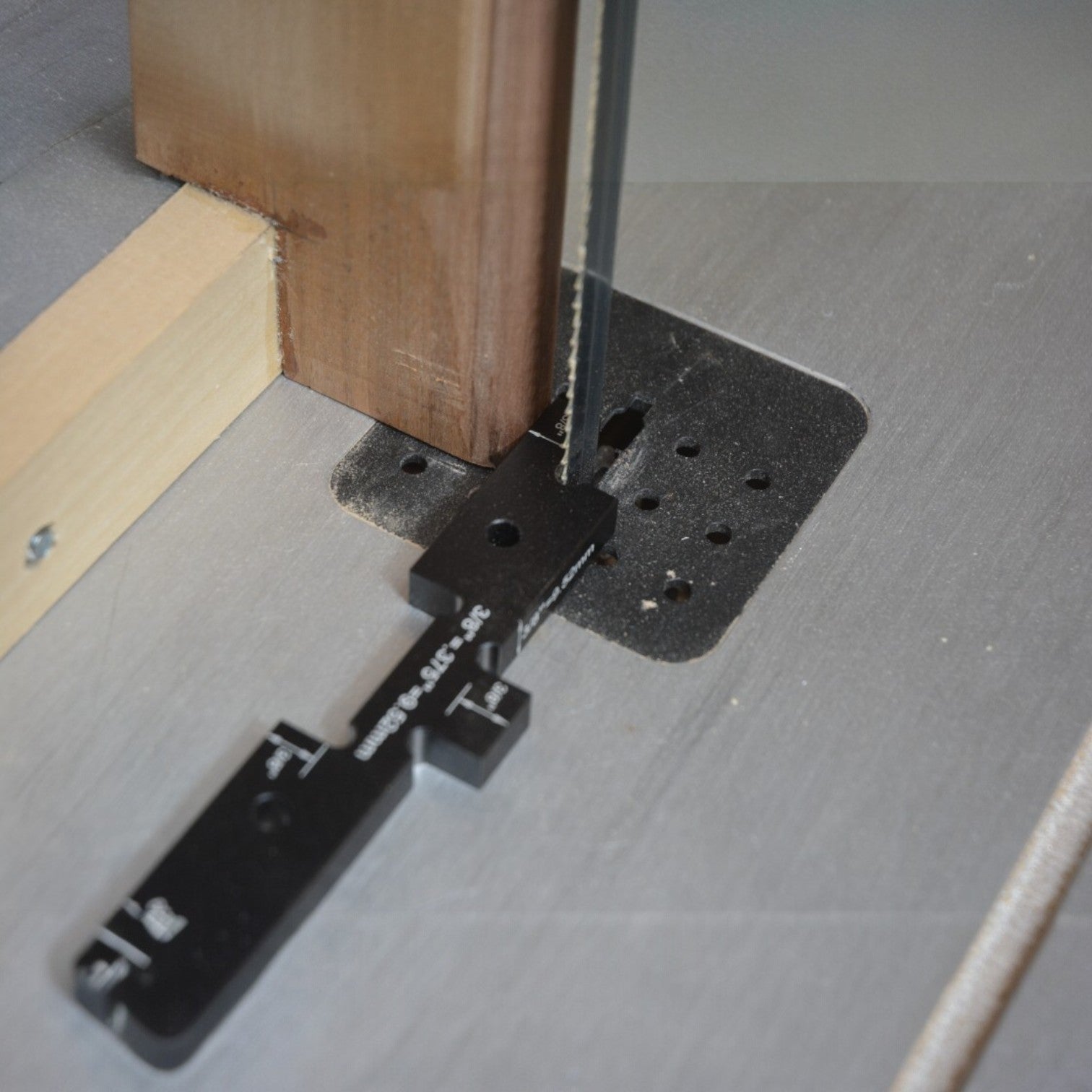

  • Setting Band Saw Fence

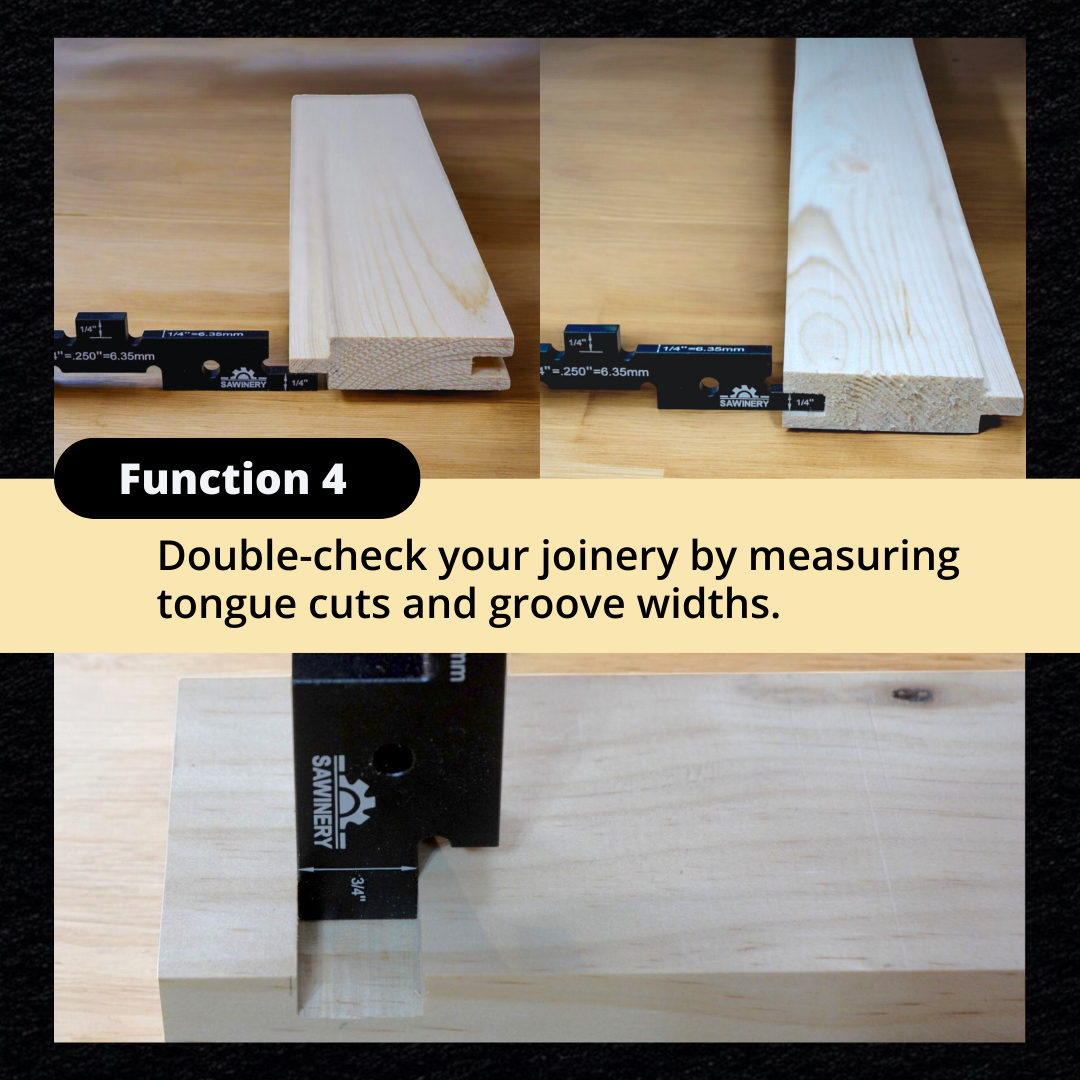

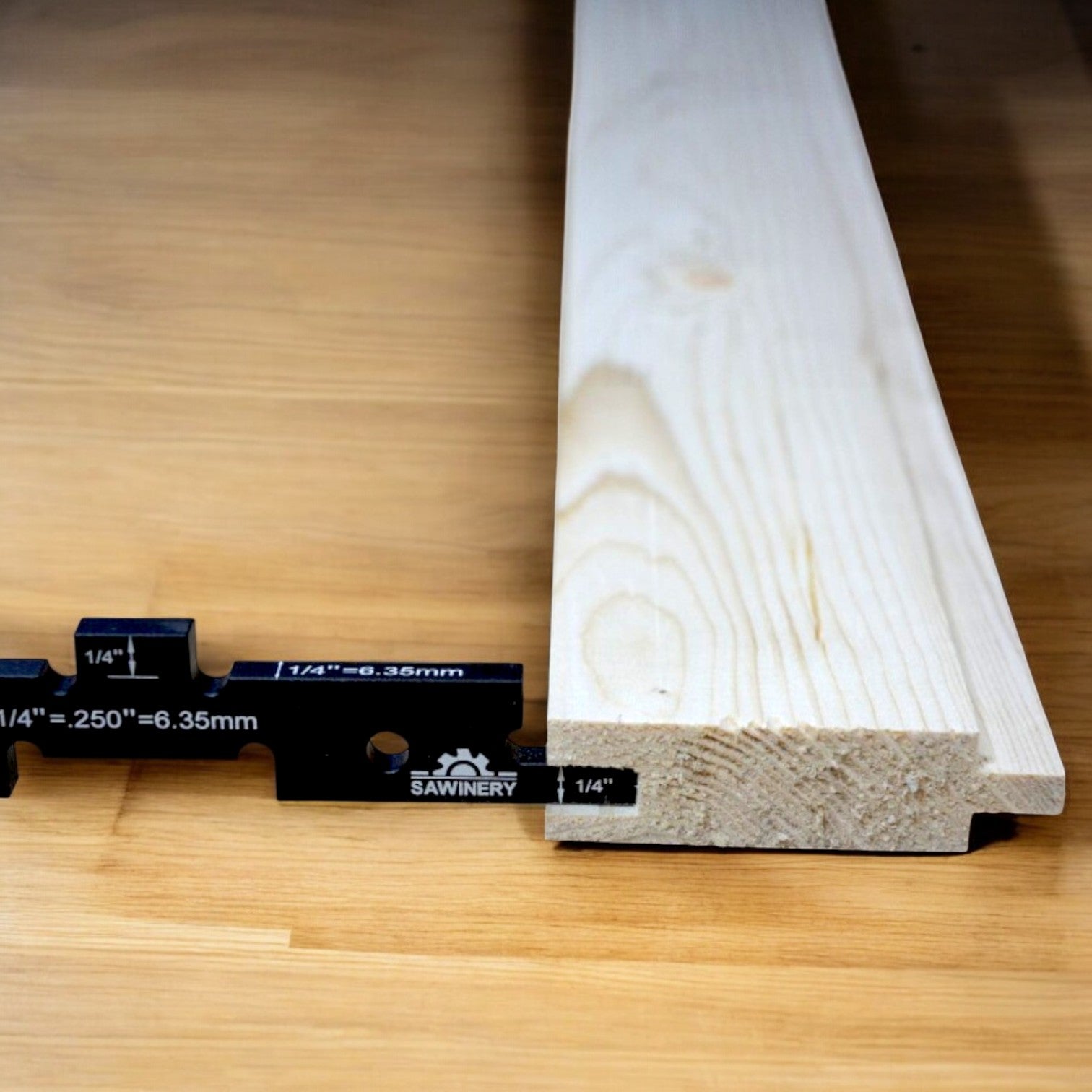

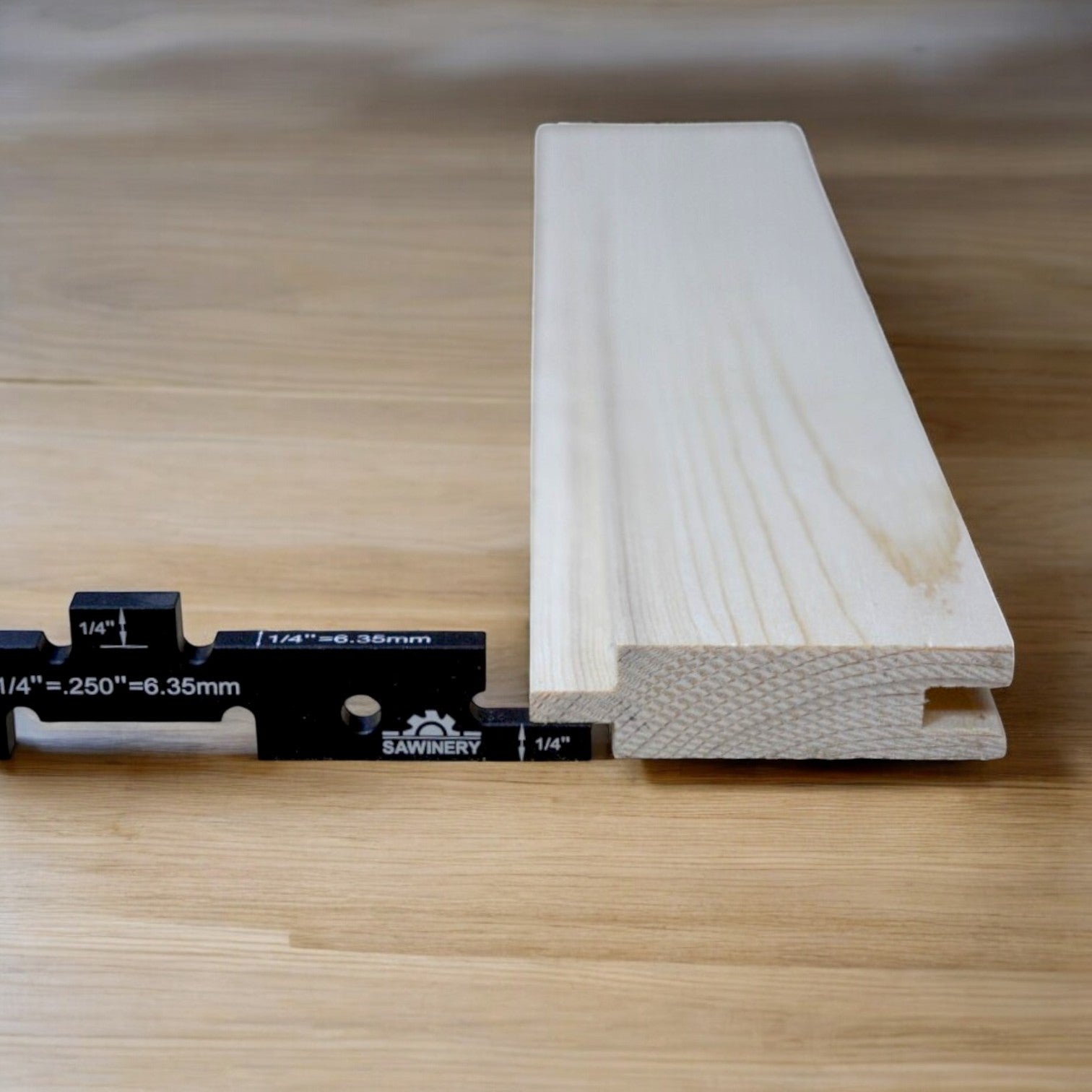

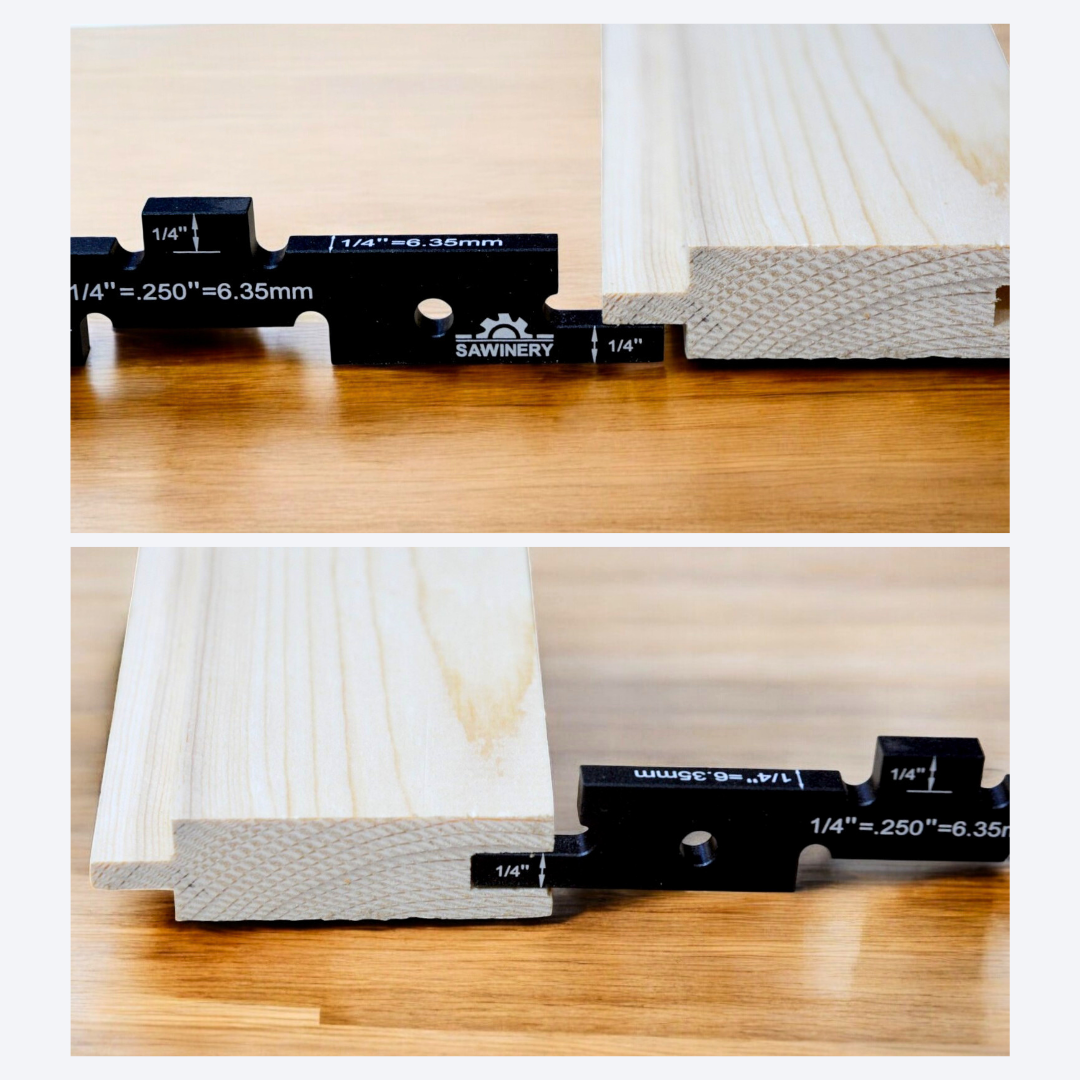

  • Checking Joinery - like Tongue Cuts & Groove Widths

Frequently Asked Questions

What tools can I set up with these bars?

They're perfect for dialing in table saw blade height, angle, and fence distance, router table fence alignment, router bit height and depth, and even bandsaw fence setups.

How accurate are Sawinery Calibrated Setup Bars?

Our Calibrated Setup Bars are made for precision, with a maximum tolerance of just 0.002". In comparison, typical setup bars can be off by 0.005" to 0.009". This can introduce noticeable errors into precision woodworking. Our tighter tolerance means you can trust your measurements and dial in your tools more accurately, helping you get the results you intended the first time.

How do I use these bars to set the blade height on my table saw?

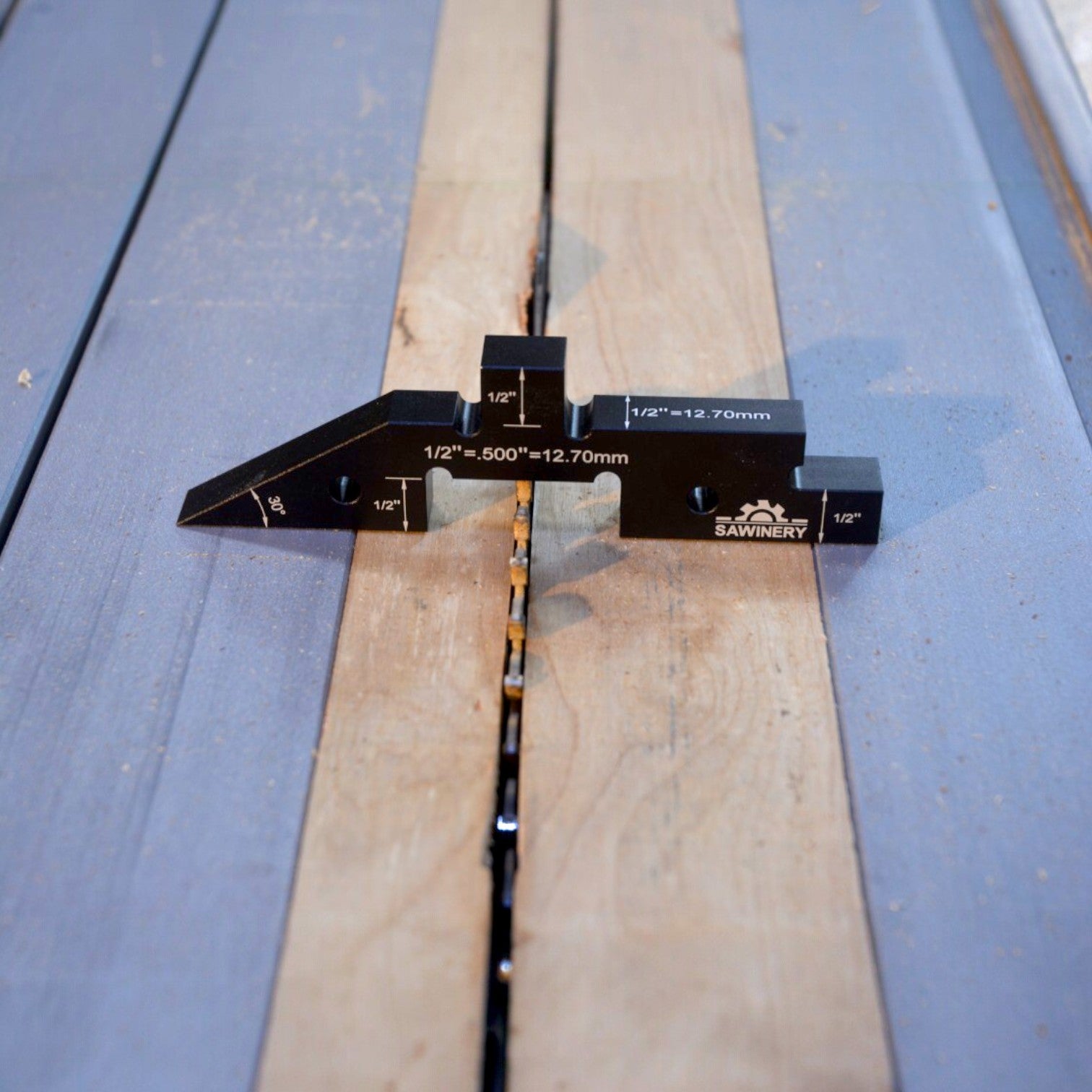

Simply place the desired bar over your blade, with the opening in the bar straddling it, and raise the blade until the tooth tips touch the bottom of the bar. If the saw's blade starts raising the bar, you've gone too high.

What are the angle gauges used for?

The built-in angles (30°, 35°, 45°, 60°, 70°, 80°, 85°, 90°) let you quickly check and adjust your blade tilt without needing a separate angle finder.

How do I use the angled edges for blade tilt?

Set the desired angle against the side of the blade, then tilt the blade until the surface of the blade is flush with the angled surface on the bar. This helps you quickly achieve common angles like 45° or 60° without pulling out a protractor.

Do I need to calibrate or recheck these bars over time?

No recalibration is needed—these are solid precision tools. Just keep them clean and free of debris for the most accurate results. Built up debris can change the overall dimensions. Store them in their box to prevent damage to the bars, which can also affect their dimensions.

Can I stack the bars to create custom measurements?

Yes! The flat sides and precise machining allow for safe stacking to achieve non-standard sizes, like combining 1/8" and 3/16" for a 5/16" measurement. Just be sure to keep any debris from getting between the bars.

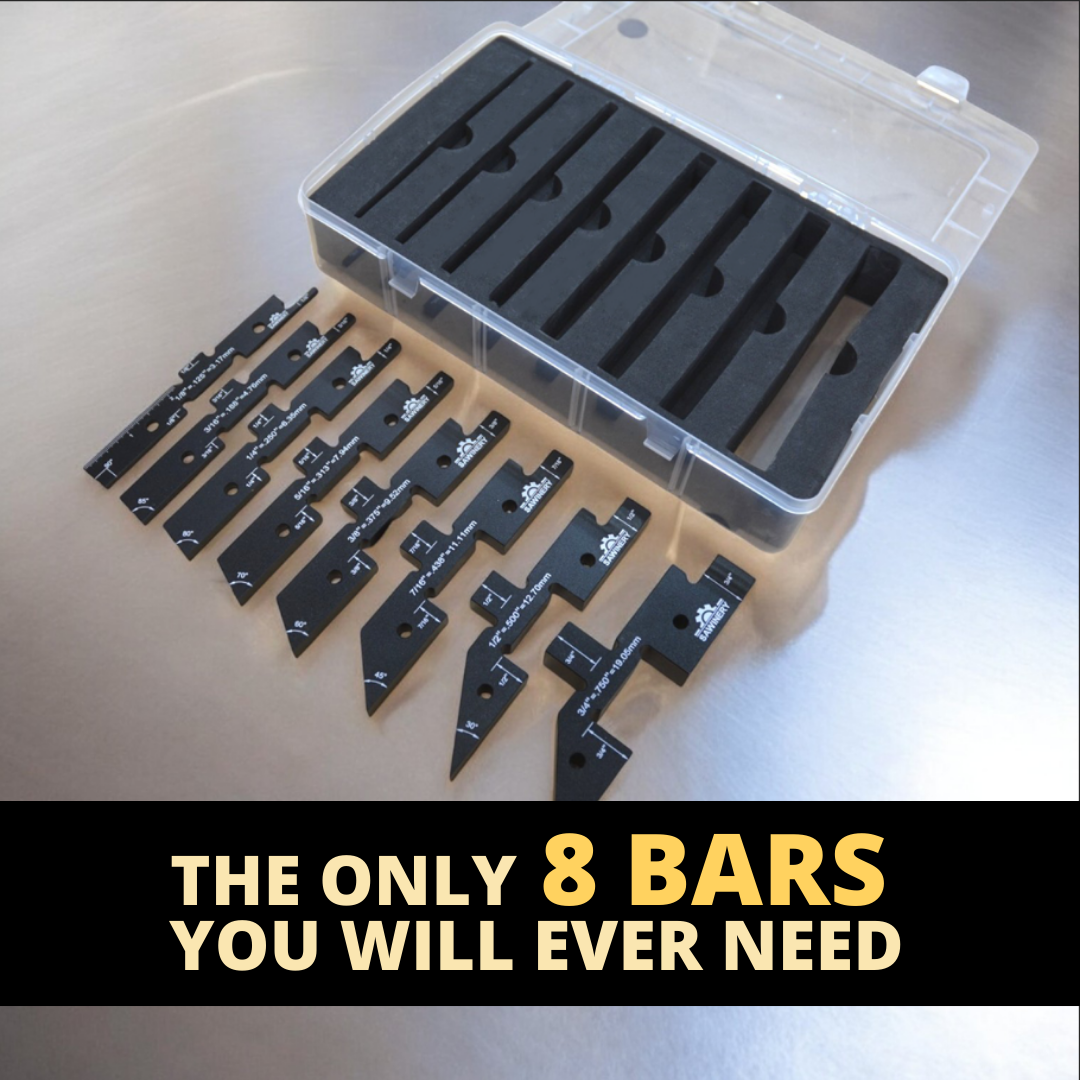

How do I store the bars?

The bars come with their own box for easy storage.
