Woodworker’s Layout Square Set

Woodworker’s Layout Square Set

$102.99
$102.99
Sale Sold out

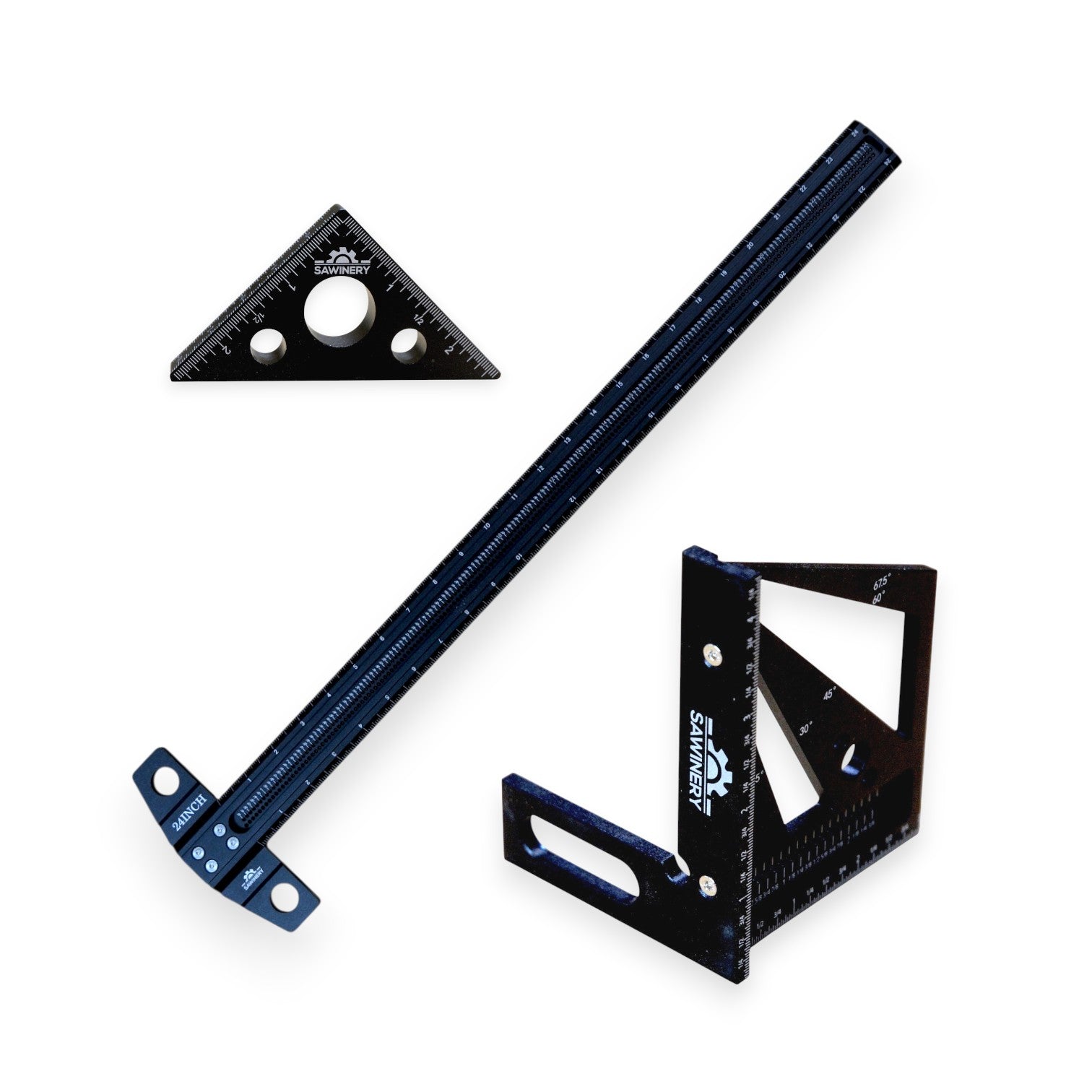

Every cut, every joint, every assembly starts with a line—and that line is only as good as the tool that drew it. The Sawinery Woodworker's Layout Square Set brings together three precision squares designed to cover every layout situation you'll encounter at the bench, from quick shop-floor checks to complex full-sheet markings.

The 3D Square gives you a third dimension that traditional try squares can't touch, wrapping lines around corners in one smooth, unbroken step, with built-in angle guides for the most common cuts.

The 24" T-Square handles the big stuff, giving you a reliable straight reference all the way across a sheet of plywood where tape measures and shorter tools fall short.

And the Triangle Pocket Square is your always-there backup, small enough to live in your apron pocket, precise enough to trust for tool setup, cut layout, and assembly checks.

  • 🎖️ A portion of every order is donated to The Purple Heart Project, helping combat-wounded veterans find peace through traditional hand tool woodworking.

Specifications

What's Included:

  • 3D Square
  • 24" T-Square
  • Triangle Pocket Square
View full details

Highlights:

  • One Set, Every Scale of Layout Work

    From full sheet to fine detail—this set covers large panel layouts, all-axis corner marking, and quick pocket checks so you always have the right square within reach.

  • 3D Square: All-Axis Marking

    The 3D Square's three legs let you measure and mark on all faces of a workpiece simultaneously—not just the flat plane—wrapping lines around corners in one accurate, uninterrupted step.

  • T-Square: Full-Sheet Reach

    The 24" T-Square draws accurate parallel and perpendicular lines up to 24" from the edge, giving you reliable layout halfway across a standard sheet of plywood where shorter tools fall short.

  • Triangle Pocket Square: Pocket-Ready Precision

    The Triangle Pocket Square lives n your apron pocket and is there for quick cut layout, tool setup checks, and assembly squaring whenever you need it—no trip across the shop required.

Uses & Features

  • Lines that Wrap Corners

    The 3D Square lets you continue a layout line from face to edge to face in one clean step, eliminating the guesswork that leads to misaligned joinery.

  • Marking Common Angles

    The 3D Square's built-in 22.5°, 30°, 45°, 60°, and 67.5° references let you lay out angled cuts without a separate bevel gauge or protractor.

  • Laying Out Cuts on Sheet Goods

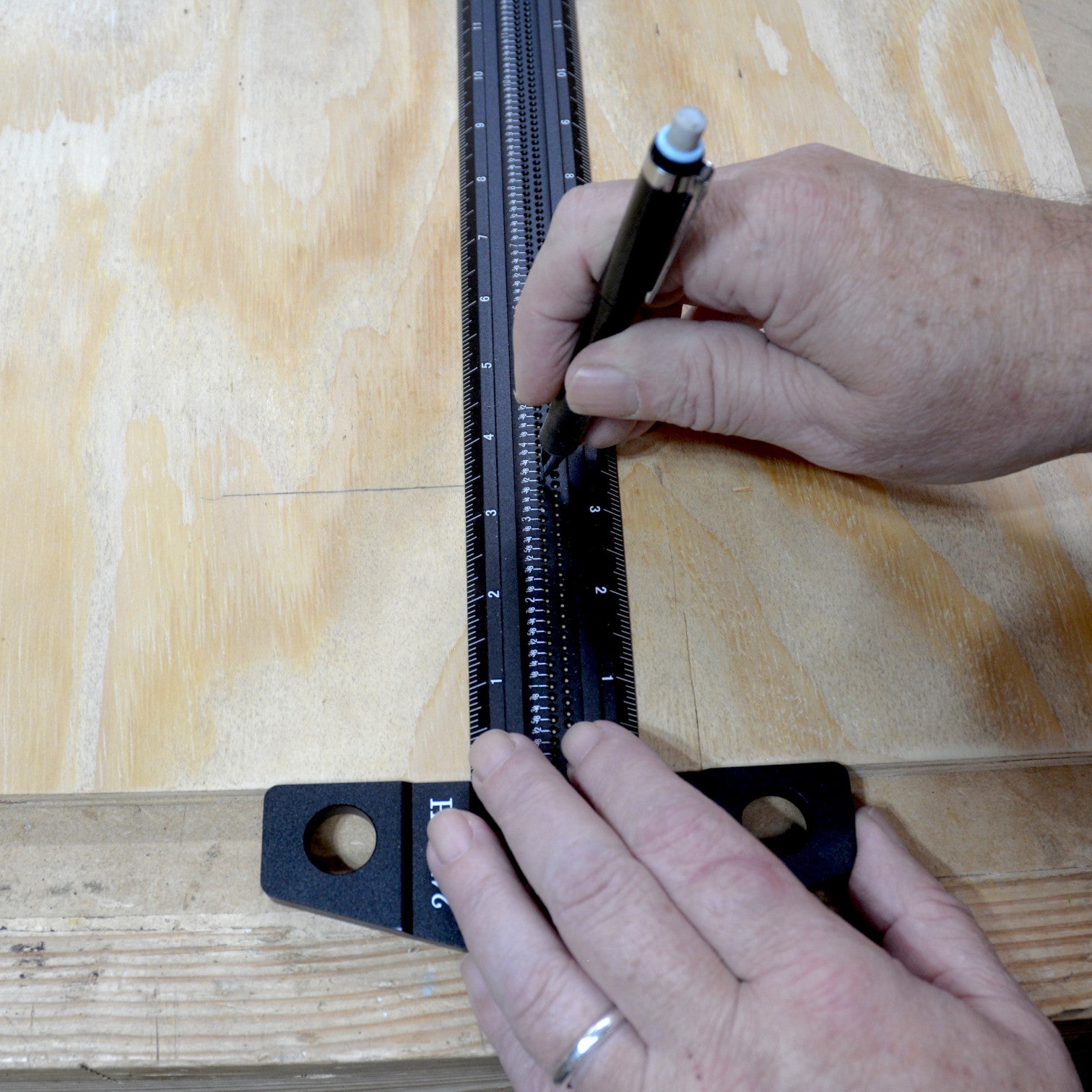

    Use the 24" T-Square to draw accurate parallel and perpendicular lines across plywood and MDF panels—where tape measures and short squares lose their reliability.

  • High-Contrast Scale in 1/16” Increments

    Clear, easy-to-read markings in 1/16" allows you to make accurate layout lines quickly without second-guessing your measurement.

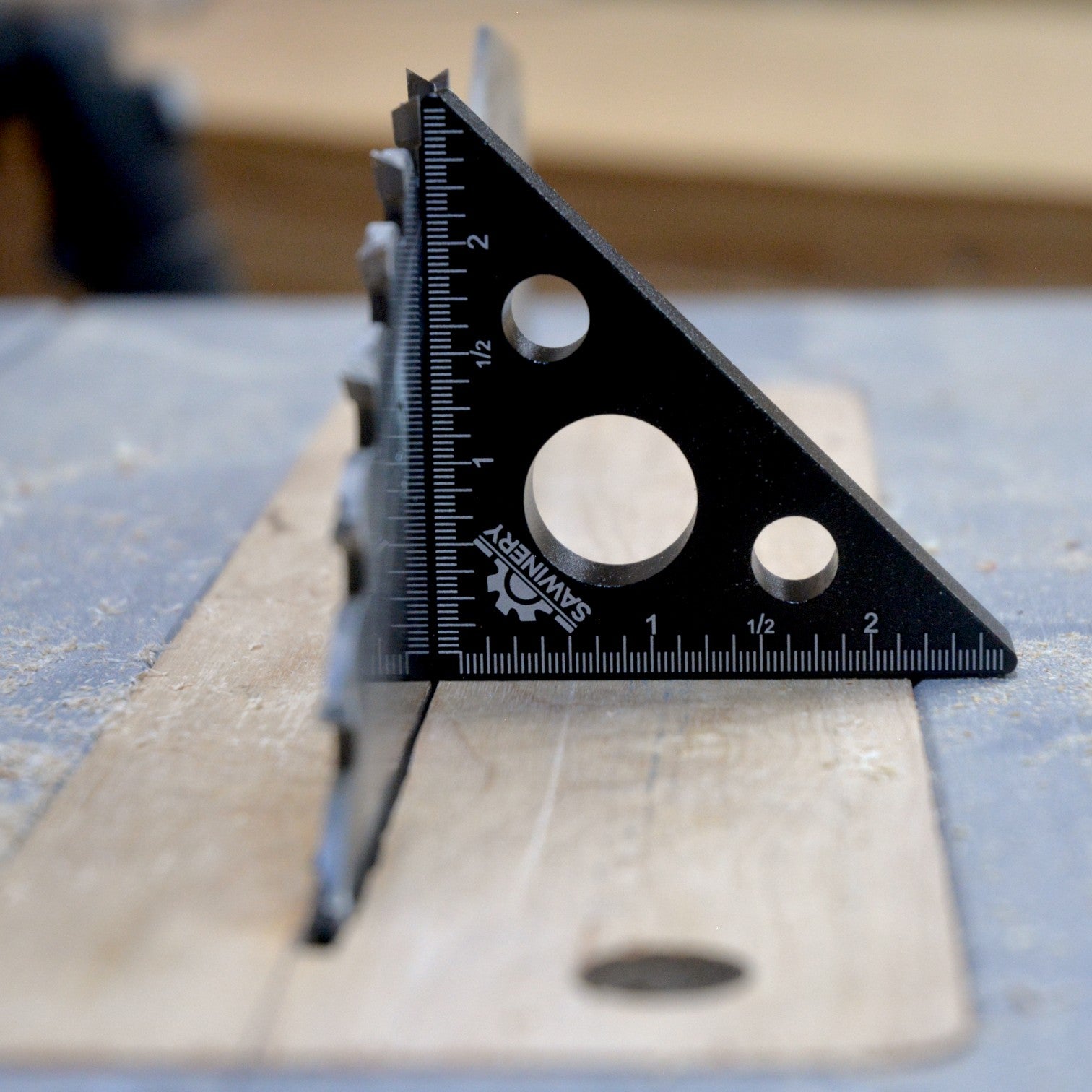

  • Quick Tool Setup and Verification

    Drop the Triangle Pocket Square against a blade, fence, or bit to confirm perpendicularity in seconds—no full-size square needed.

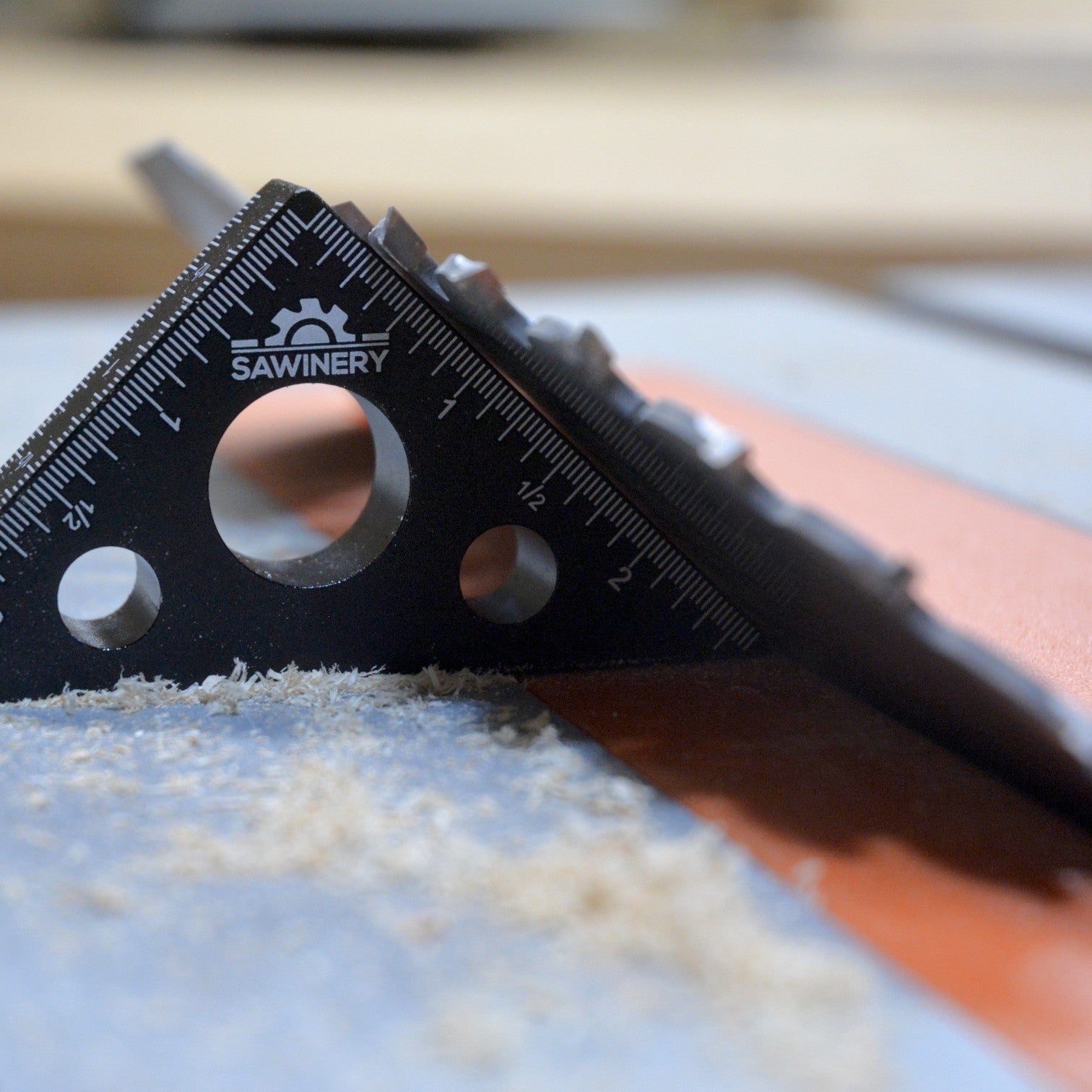

  • 45-degree Angle for Setting Up Miters

    The Triangle Pocket Square's built-in 45° edge gives you an instant reference for marking miter cuts and checking diagonal setups on power tools—no separate bevel gauge needed.
