SharpMate Upgrade Kit

SharpMate Upgrade Kit

$14.90
$14.90
Sale Sold out

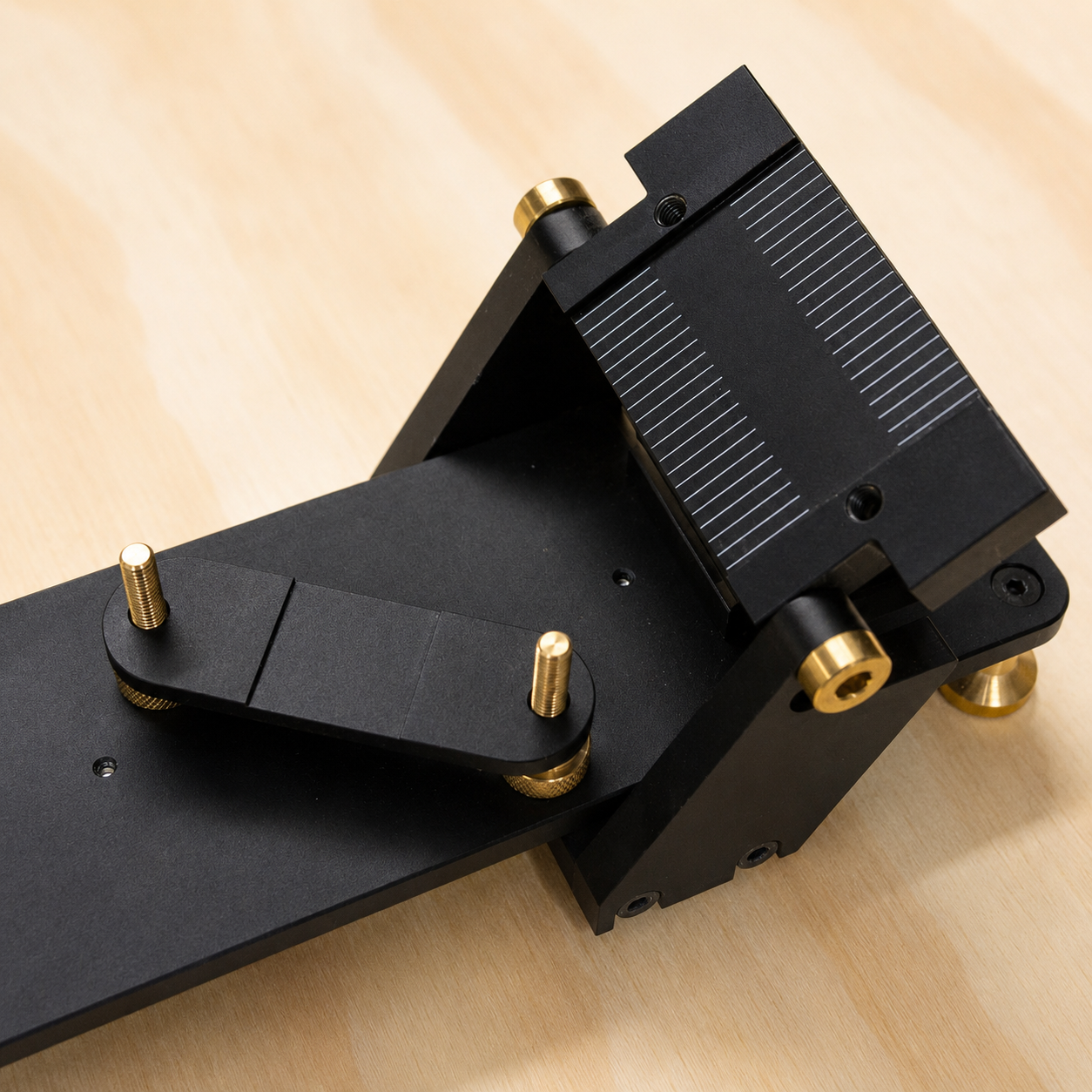

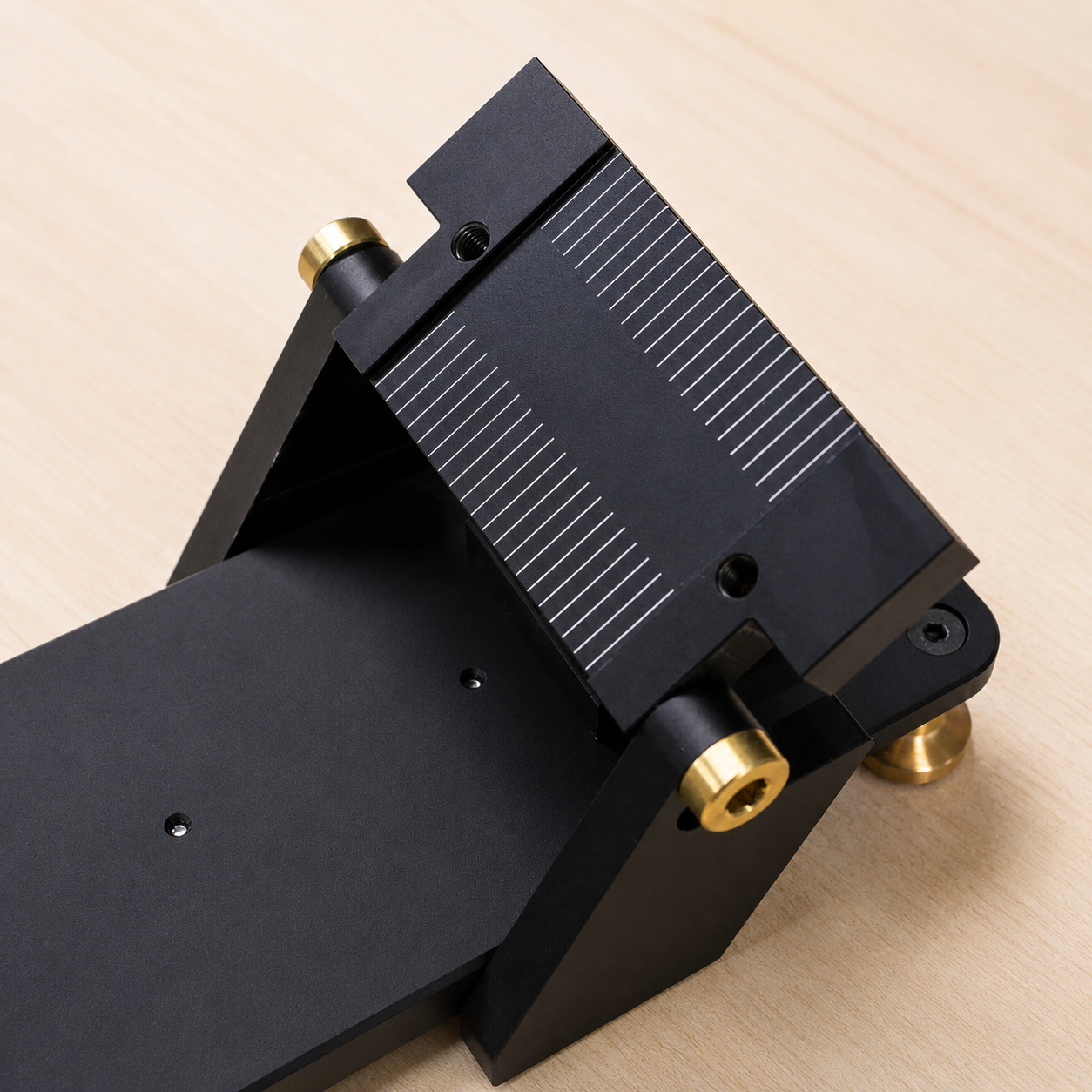

The SharpMate Upgrade Kit lets you update your SharpMate with the improved blade clamp system used on the newer SharpMate setup.

This upgraded clamp gives you more flexibility when sharpening wider plane blades, with support for blades up to 2 3/8" wide. It also improves blade alignment by moving the chisel alignment notch to the upper clamp bar, giving you an easier, more positive reference when setting up your edge.

It’s also the key upgrade for expanding your SharpMate with compatible adapters, including adapters for short chisels, small blades, and Japanese chisels.

Not sure which one to choose? If this is your first SharpMate adapter purchase, choose “I have the SharpMate.”

  • 🎖️ A portion of every order is donated to The Purple Heart Project, helping combat-wounded veterans find peace through traditional hand tool woodworking.

Specifications

⚠️ CA WARNING: Cancer and Reproductive Harm from Lead, Nickel, and Wood Dust exposure — www.P65Warnings.ca.gov

View full details

Highlights:

  • Upgrade Your SharpMate Setup

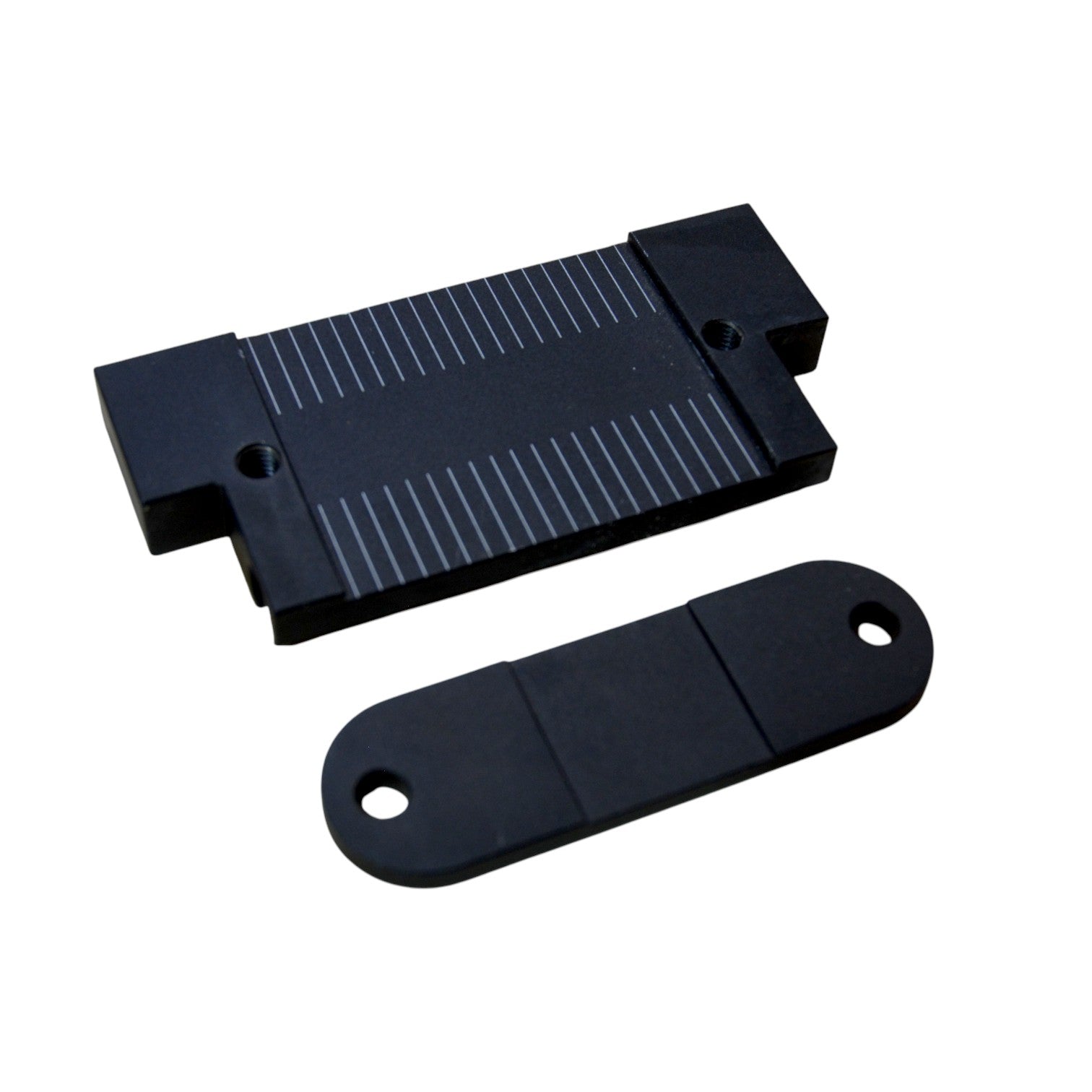

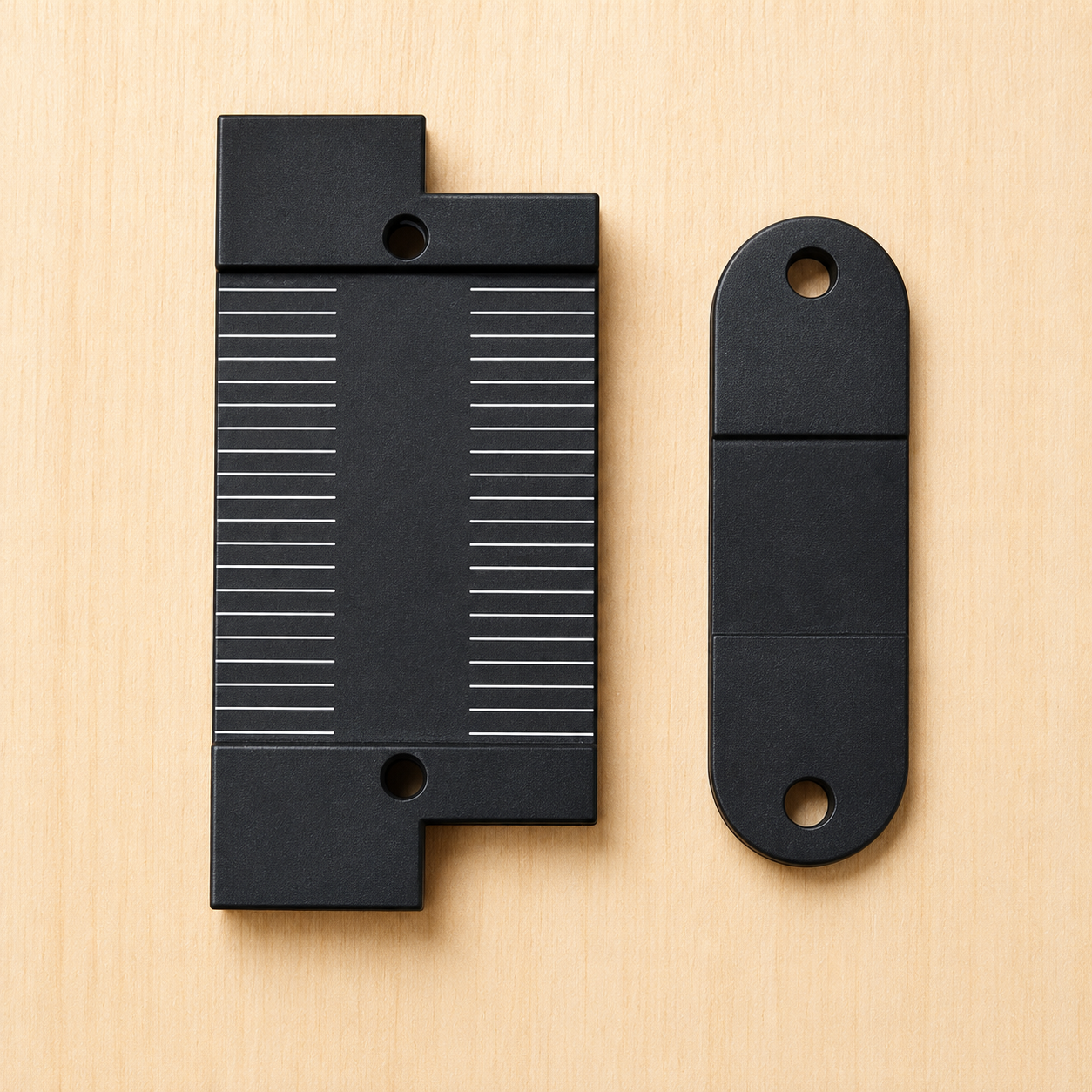

    Updates your SharpMate with the improved blade holder baseplate and clamp bar used on the newer system.

  • Sharpen Wider Plane Blades

    Allows your SharpMate to sharpen plane blades up to 2 3/8" wide.

  • Easier Chisel Alignment

    The chisel alignment notch is moved to the upper clamp bar for a clearer, more positive setup.

  • Better Plane Blade Positioning

    The updated design helps make it easier to align wider plane blades with the sharpening stone.

  • Adapter-Ready Upgrade

    Prepares your SharpMate for compatible adapter kits, including Short Chisel, Small Blade, and Japanese Chisel Adapters.

Frequently Asked Questions

How do I know if I need the SharpMate Upgrade Kit?

You need the Upgrade Kit if you have the current SharpMate and want to use compatible adapter kits, such as the Short Chisel Adapter, Small Blade Adapter, or Japanese Chisel Adapter. It is also useful if you want to sharpen wider plane blades.

What does the SharpMate Upgrade Kit do?

The Upgrade Kit updates your SharpMate with the improved blade clamp system. It helps with wider plane blades, improves chisel alignment, and makes your SharpMate ready for compatible adapters.

Do I need this if I have SharpMate Plus?

No. SharpMate Plus already includes the upgraded blade clamp system, so you do not need this kit.

Do I need a wider stone for wider plane blades?

If you plan to sharpen plane blades wider than 1 7/8", we recommend using Sawinery’s 75mm wide stone for better blade support.

How do I install the Upgrade Kit?

Remove the existing thumbscrews, rubber washers, and blade holder parts from your SharpMate. Install the upgraded Blade Holder Baseplate in the same position, making sure the notched side with the white alignment lines faces up and the baseplate angles toward the clamp end.

Then reinstall the screws, thumbscrews, rubber washers, and upgraded clamp bar.

Helpful Setup Note: When installing the upgraded Blade Holder Baseplate, it may sit loosely until tightened. This is normal. Make sure the notched side with the white alignment lines faces up, and that the baseplate angles toward the clamp end of the SharpMate.

Uses & Features

  • Easier Blade Alignment

    The updated clamp design gives you a clearer reference when setting up chisels and plane blades.

  • Ready for Wider Blades & Adapters

    Upgrade your SharpMate for plane blades up to 2 3/8" wide and compatible SharpMate adapters.
